Overlay is not working

Hi @jerinraj5555
Please confirm these things  :

the overlay path exactly mirrors the path in /libs. The file structure in /apps must exactly match the one in /libs to successfully override the JSP file.

• Original file: /libs/dam/gui/coral/components/admin/contentrenderer/base/init/assetBase.jsp

Overlayed file: /apps/dam/gui/coral/components/admin/contentrenderer/base/init/assetBase.jsp


Ensure that the permissions for the /apps folder are set correctly. Sometimes AEM security restrictions prevent certain files in /apps from being used. You can check and adjust permissions in the CRX repository to ensure that your overlay is access.


If you're using a dispatcher, it might be caching the JSP from /libs. Clear the dispatcher cache to ensure it's picking up the latest version from /apps.

Verify if the overlay is dependent on a sling

or other inherited components. If the original file in /libs is included via a resource type, it might bypass your overlay.

• Check the sling:resourceSuperType property on the component you're trying to overlay.
• Ensure there’s no fallback logic implemented in the component to use the original file

Check the error and debug logs (/crx-quickstart/logs/error.log and /crx-quickstart/logs/request.log) for any warnings or errors related to the JSP rendering. It might provide clues if AEM is having issues with your overlay.

Let me know if its worked or not !

Thanks

@jerinraj5555 Did you find the suggestion helpful? Please let us know if you require more information. Otherwise, please mark the answer as correct for posterity. If you've discovered a solution yourself, we would appreciate it if you could share it with the community. Thank you!

Hi,

The problem is that the file

libs/dam/gui/coral/components/admin/contentrenderer/base/init/assetBase.jsp

is hardcoded and included in the following files:

• libs/dam/gui/coral/components/admin/contentrenderer/card/asset/asset.jsp
• libs/dam/gui/coral/components/admin/contentrenderer/column/asset/asset.jsp
• libs/dam/gui/coral/components/admin/contentrenderer/row/asset/asset.jsp

Therefore, you must also overlay these files to ensure that your custom functionality is applied.

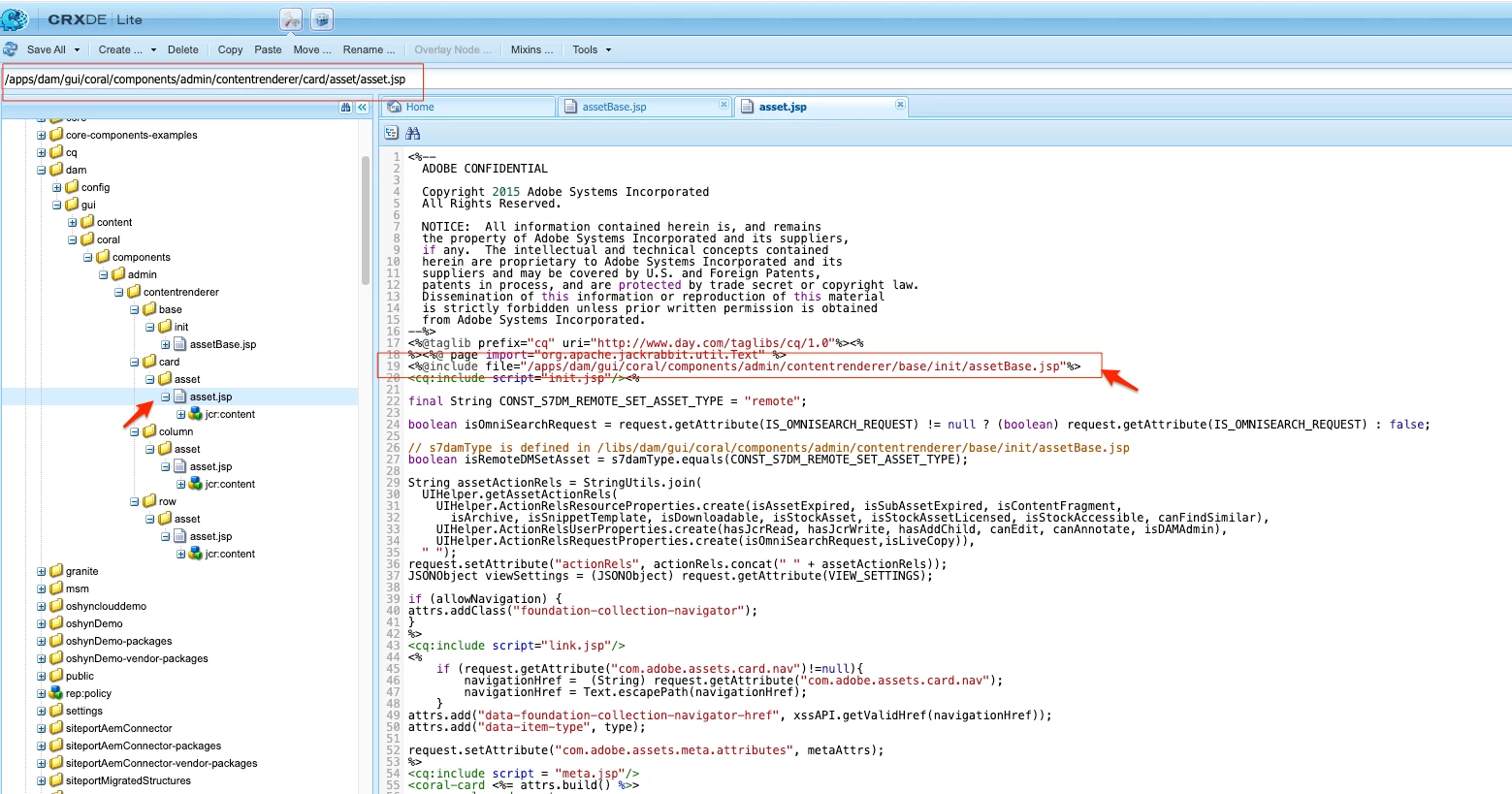

So, your overlay should look like this:

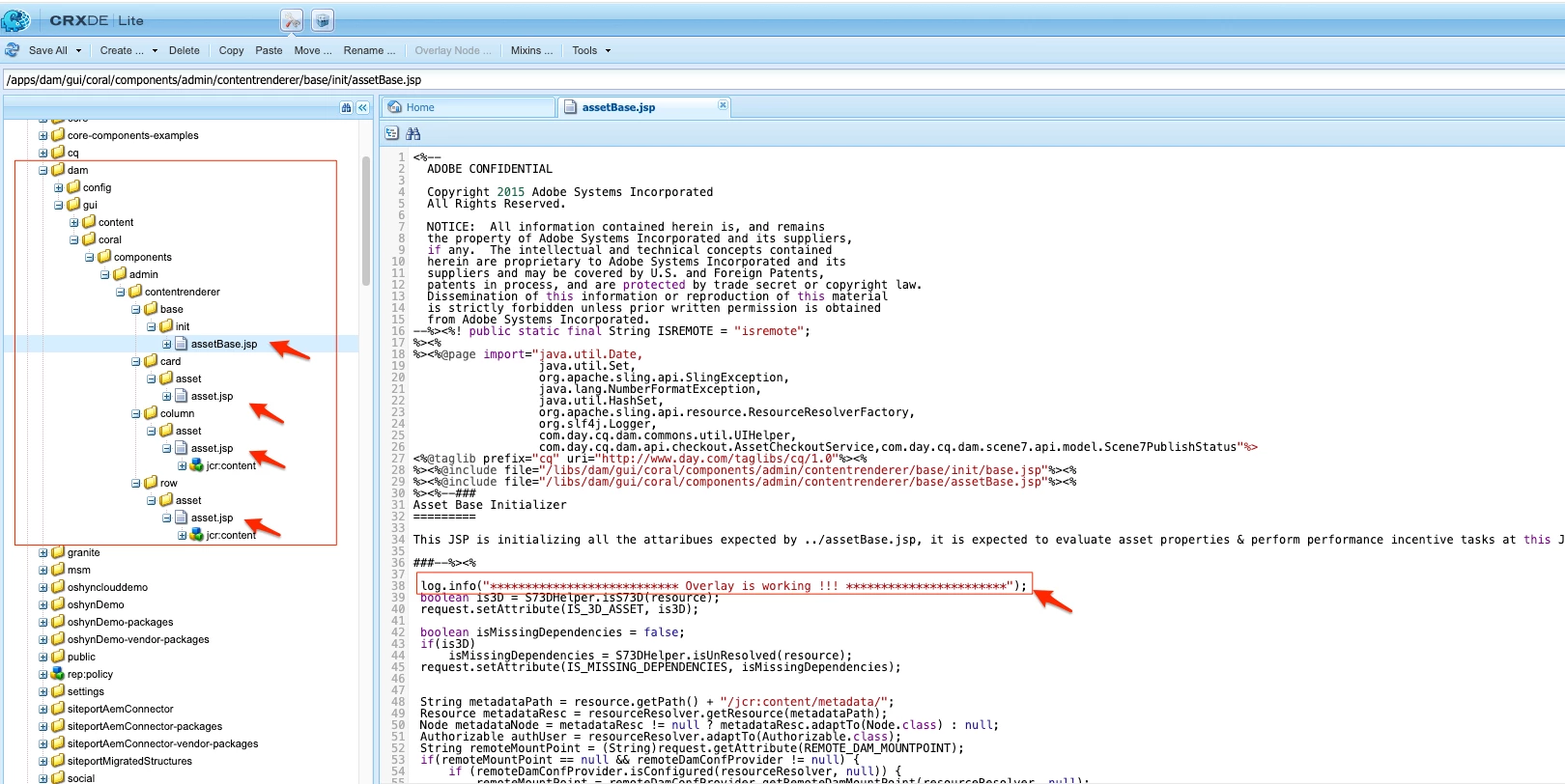

Follow the below pattern with all the files i shared

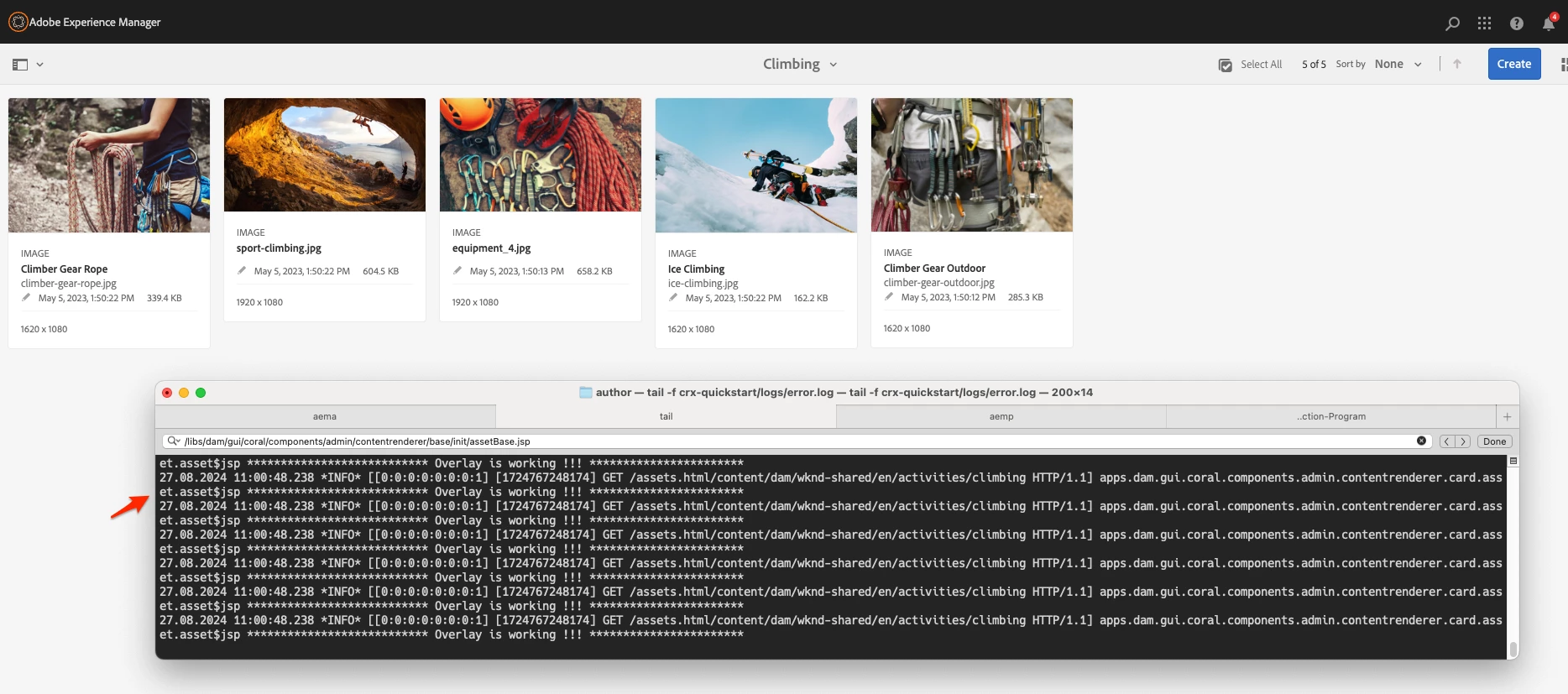

Now, you can check that the overlay is working:

Hope this helps
