Scroll Depth Tracking

I am trying to track percent page viewed on all pages using Adobe Launch. I am new to Adobe so could any one help me on how we have to implement this using Launch.Please help me with the steps on how to achieve this.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
kumararajak
kumararajakAccepted solution
Level 5
August 13, 2019

Hi Srjith,

First, Update Your AppMeasurement (Javascript) Code to v1.6 (or higher) then

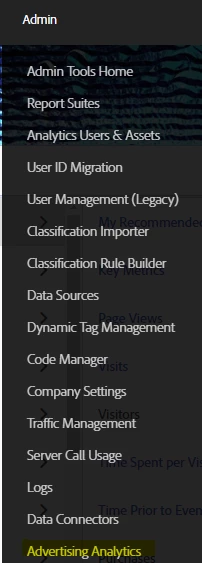

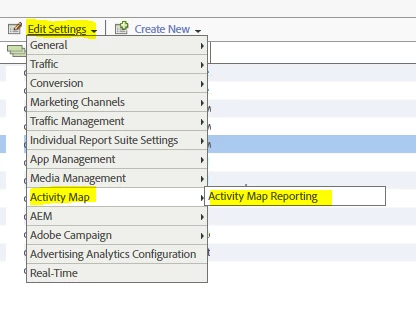

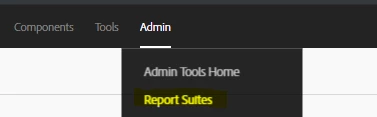

  1. Log in to Adobe Analytics and navigate to Analytics > [Admin > Report Suites > # > Edit Settings > Activity Map] > Activity Map Reporting .

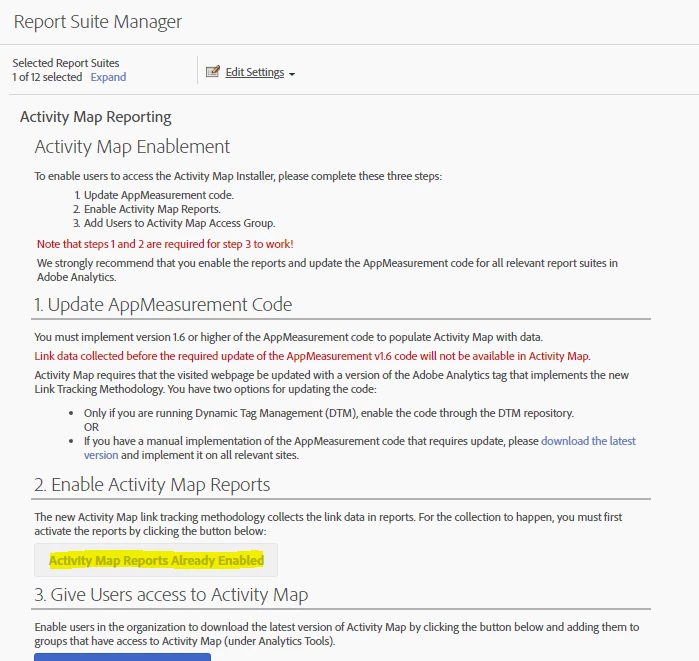

  2. Activity Map collects the link data in Activity Map reports. For the activation to happen, you must first activate the variables by clicking Enable Activity Map Reports.This step adds all the Analytics dimensions that you need to collect data.
  3. After about an hour, check the Activity Map Page report, which shows all the pages where users clicked on a link.

24 replies

New Participant
October 8, 2019

Hi Kumarararajak,

Could you please advise on my implementation?  It worked for a while but it stopped working.  I checked the s_ppv cookie is not getting generated.  My Adobe Analytics extension in launch is current v1.7.8 with AppMeasurement 2.17.0 . I have pasted the below coding in the custom code within the Adobe Analytics extension.

s.usePlugins=true

s.doPlugins=function(s) {

    /* Add calls to plugins here */

  if(s.pageName) s.getPercentPageViewed();

if(s._ppvPreviousPage)

{

s.prop7 = s._ppvPreviousPage;

s.prop10 = s._ppvHighestPercentViewed;

s.prop12 = s._ppvInitialPercentViewed;

}

}

/******************************************* BEGIN CODE TO DEPLOY *******************************************/

/* Adobe Consulting Plugin: getPercentPageViewed v3.01 w/handlePPVevents helper function (Requires AppMeasurement and p_fo plugin) */

s.getPercentPageViewed=function(pid,ch){var s=this,a=s.c_r("s_ppv");a=-1<a.indexOf(",")?a.split(","):[];a[0]=s.unescape(a[0]);

pid=pid?pid:s.pageName?s.pageName:document.location.href;s.ppvChange=ch?ch:!0;if("undefine d"===typeof s.linkType||"o"!==

s.linkType)s.ppvID&&s.ppvID===pid||(s.ppvID=pid,s.c_w("s_ppv",""),s.handlePPVevents()),s.p _fo("s_gppvLoad")&&window

.addEventListener&&(window.addEventListener("load",s.handlePPVevents,!1),window.addEventLi stener("click",s.handlePPVevents, !1),window.addEventListener("scroll",s.handlePPVevents,!1),window.addEventListener("resiz e",s.handlePPVevents,!1)),s._ppvPreviousPage

=a[0]?a[0]:"",s._ppvHighestPercentViewed=a[1]?a[1]:"",s._ppvInitialPercentViewed=a[2]?a[2] :"",s._ppvHighestPixelsSeen=a[3]?a[3]:""};

/* Adobe Consulting Plugin: handlePPVevents helper function (for getPercentPageViewed v3.01 Plugin) */

s.handlePPVevents=function(){if("undefined"!==typeof s_c_il){for(var c=0,d=s_c_il.length;c<d;c++)if(s_c_il[c]&&s_c_il[c].getPercentPageViewed){var a=s_c_il[c];break}if(a&&a.ppvID){var f=Math.max(Math.max(document.body.scrollHeight,document.documentElement.scrollHeight),Mat h.max(document.body.offsetHeight,document.documentElement.offsetHeight),Math.max(document.

body.clientHeight,document.documentElement.clientHeight));c=(window.pageYOffset||window.do cument.documentElement.scrollTop||window.document.body.scrollTop)+(window.innerHeight||doc ument.documentElement.clientHeight||document.body.clientHeight);d=Math.min(Math.round

(c/f*100),100);var e="";!a.c_r("s_tp")||a.unescape(a.c_r("s_ppv").split(",")[0])!==a.ppvID||1==a.ppvChange&&

a.c_r("s_tp")&&f!= a.c_r("s_tp")?(a.c_w("s_tp",f),a.c_w("s_ppv","")):e=a.c_r("s_ppv");var b=e&&-1<e.indexOf(",")?e.split(",",4):[];f=0<b.length?b[0]:escape(a.ppvID);var g=1<b.length?parseInt(b[1]):d,h=2<b.length?parseInt(b[2]):d;b=3<b.length?parseInt(b[3]):c ;0<d&&(e=f+","+(d>g?d:g)+","+h+","+(c>b?c:b));a.c_w("s_ppv",e)}}};

/* Adobe Consulting Plugin: p_fo (pageFirstOnly) v2.0 (Requires AppMeasurement) */

s.p_fo=function(on){var s=this;s.__fo||(s.__fo={});if(s.__fo[on])return!1;s.__fo[on]={};return!0};

/******************************************** END CODE TO DEPLOY ********************************************/

Translate
srijithkumarkb
Level 2
August 23, 2019

Hi Kumararajak,

First of all thanks for helping me with all the doubts which i had.Need some help with Adobe launch with the new/repeat visitor tracking. Can you help me on how do we create a custom script in Adobe launch extension to pull this information in to an eVar in Global variables. If you can provide the script which stores this information in an eVar would be excellent. I am just the beginner hence if I am missing something please excuse.

Thanks

Srijith

Translate
kumararajak
kumararajakAccepted solution
Level 5
August 13, 2019

Hi Srjith,

First, Update Your AppMeasurement (Javascript) Code to v1.6 (or higher) then

  1. Log in to Adobe Analytics and navigate to Analytics > [Admin > Report Suites > # > Edit Settings > Activity Map] > Activity Map Reporting .
  2. Activity Map collects the link data in Activity Map reports. For the activation to happen, you must first activate the variables by clicking Enable Activity Map Reports.This step adds all the Analytics dimensions that you need to collect data.
  3. After about an hour, check the Activity Map Page report, which shows all the pages where users clicked on a link.

Translate
srijithkumarkb
Level 2
August 13, 2019

Hi Kumararajak,

How do I enable activity map for all link clicks on all webpages. I am using adobe launch for the implementation.

please let me know the steps on tracking the link clicks using this feature

Translate
kumararajak
Level 5
August 2, 2019

Dear Srijith,

Confiugre Last touch marketing channel,

Also, Try Adverstising analytics.

Regards,

Kumararaja K

Translate
srijithkumarkb
Level 2
August 2, 2019

Hi Kumararajak

Thanks for the solution provided it worked. Do you know how do we integrate google marketing platform to adobe. Below are the things we need to track after integrating any help will be appreciated.

Track Advertising Campaign Impressions Served

Track Advertising Campaign Impressions Clicked

Track Information From Paid Advertising Platforms (Google Marketing Platform)

Track Information From The Trade Desk

Track Information From Affiliates (Nerdwallet, Etc.)

Track Information From Paid Social (Linkedin, Facebook, Twitter)

Track Costs From Advertising Integrations

Translate
kumararajak
Level 5
July 24, 2019

Dear Srijith,

Please mark correct if you got the information you needed to close out from unanswered.

Regards,

Kumararaja K

Translate
srijithkumarkb
Level 2
July 24, 2019

Thanks so much appreciated:)

Translate
kumararajak
Level 5
July 24, 2019

HI Vinay,

Its not mandatory to set rule to work globally with all pages. Its all depend on when you want to fire this.

Regards,

Kumararaja K

Translate
vinayp20414773
New Participant
July 24, 2019

Hi,

Thanks for explaining it. I have implemented the same with Adobe Analytic Extension in Launch. Do I need to create a separate Rule after this or this will work globally with all the pages?

Regards,

Translate
