AEM 6.1 Touch Ui checkbox, how to get it unchecked while reopening the dialog.

  • March 16, 2016
  • 25 replies
  • 39081 views

[Thread Edited By Adobe]

/*Don’t forget to meet and greet your fellow peers virtually by telling them about yourself here.

Go ahead and to it now: https://adobe.ly/3eDnB4v */



Actual Post:

Hi,

Using AEM 6.1, Touch Ui dialogs, I have a checkbox (checked by default).



1. Checkbox is checked (first time, be default)

2. Uncheck the checkbox and submit the dialog

3. Open the dialog, it is still checked.

Question: Is there any way to uncheck the checkbox in Step 3 above





    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by Tyler_Maynard

    After playing around, here is the approach I use now involves using cq:template to prefill the resource with a checked value. Just make sure the name of the value you are saving, and the value that is set when checked are present in the cq:template.

    Component:

    cq:dialog:

    <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" jcr:title="Checkbox" sling:resourceType="cq/gui/components/authoring/dialog" helpPath="en/cq/current/wcm/default_components.html#Image"> <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns" margin="{Boolean}false" type="nav"/> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <items jcr:primaryType="nt:unstructured"> <hideMobile jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/checkbox" name="./myValue" text="Check By Default" value="isChecked"/> </items> </column> </items> </content> </jcr:root>



    cq:template

    <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" myValue="isChecked"> </jcr:root>



    checkbox.html

    <h1>${properties.myValue}</h1>




    25 replies

    Show previous replies
    Clemente-3SHARE
    Clemente-3SHARE
    New Participant
    July 22, 2016

    I suppose you already found the solution for your particular scenario. Just in case, here is what I did for the same scenario. It works as expected.

    You have to create a pair of nodes for each Checkbox you want to use:
    <myCheckbox
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/foundation/form/checkbox"
        text="Check this"
        name="./myCheckbox"
        value="true"/>
    <myCheckboxType
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/foundation/form/hidden"
        name="./myCheckbox@TypeHint"
        value="Boolean"/>

    Cheers.

      Tyler_Maynard
      Tyler_Maynard
      New Participant
      June 2, 2016

      I ended up just rewording my dialog so its the opposite. Makes the author experience less desirable.

      Changed:

      Use default container [x] <-- always checked because I want it to be by default, but 'checked=true' is garbage.

      Do not use default container [ ] <-- reworded so now its confusing but at least it saves right.



      Another option: use cq:template node to set the default value that will make it checked by default.

        Hemant_arora
        Hemant_arora
        New Participant
        April 19, 2016

        delete the node

        <enable-delete jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/hidden" name="./facets-enable@Delete" value="{Boolean}true"/>





        and it will work fine. I faced the same issue.

          A
          Anonymous
          April 19, 2016

          HI , I am facing the same issue. Could you solve it?

            jydps87387977
            jydps87387977Author
            New Participant
            March 21, 2016

            On removing "value=true", then on checkbox 'check' and submit will store the "value=on".

              L
              leeasling
              New Participant
              March 21, 2016

              Remove the "value=true".  This sets the value every time.

                jydps87387977
                jydps87387977Author
                New Participant
                March 20, 2016

                Any suggestions for above ?

                  jydps87387977
                  jydps87387977Author
                  New Participant
                  March 17, 2016

                  Thank you for the response.

                  My requirement is to have the default checkbox as 'checked',

                  1. When user opens the dialog, first time he will see the checkbox as 'checked'.

                  2. User unchecks the dialog, and submit the dialog

                  3. When user reopens the dialog, the checkbox should be unchecked.

                  Question: How to achieve Step 3, if this checkbox is marked as checked=true ?

                    edubey
                    edubey
                    New Participant
                    March 17, 2016

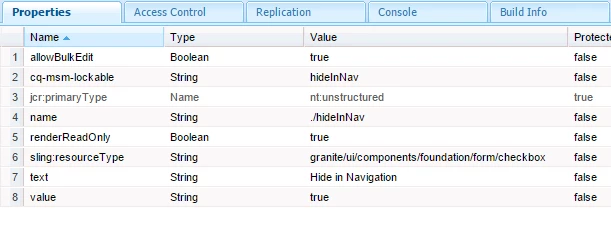

                    Check these config properties. It works

                    Path: /libs/foundation/components/page/cq:dialog/content/items/tabs/items/basic/items/column/items/title/items/hideinnav

                      jydps87387977
                      jydps87387977Author
                      New Participant
                      March 17, 2016
                      Here is the checkbox details from .context.xml <enable jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/checkbox" name="./facets-enable" text="Enable Search Facets" value="true"         checked="{Boolean}true"/>
                      <enable-delete jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/hidden" name="./facets-enable@Delete" value="{Boolean}true"/>
