AEM 6.3.1.2 Touch UI OOTB RTE enable specialchars gives js errors

  • November 26, 2018
  • 4 replies
  • 2265 views

Hi,

I am getting js errors when enabling special chars in Touch UI RTE, getting same results using the package from helpx below

Configuring Experience Manager Rich Text Editor Plugins in a Touch UI Component Dialog
Looks like there needs to be popovers config for specialchars which is required under ui settings and is missing hence the error.

Below are the js errors
1) /libs/clientlibs/granite/richtext/js/rte/ui/dialogs/AbstractBaseDialog.js
this._command = config.parameters.command;  // the config param doesnt seem to have the commands commented this line to proceed
2) /libs/clientlibs/granite/richtext/js/rte/ui/PopoverManager.js

//$trigger. is undefined so specified some static values for below in the js now shows up the special char pop up and it works.

triggerOffs = $trigger.offset();

triggerCenter = ($trigger.width() / 2);
target: $trigger[0]

Do we know sample popovers config for special chars, or if this bug is fixed with some later releases.

currently using AEM6.3 with SP1 and CF

Thanks

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by akashdeepAEM

    Thank you friends,

    I tried on a vanila instance and it did work for me, could be something to do with my project package.
    As a temporary fix may be we just need to overlay to specify command as below :
    /clientlibs/granite/richtext/js/rte/ui/dialogs/AbstractBaseDialog.js

    attach: function (config, $container, editorKernel, enforceCreation) {

            if(config.parameters != undefined && config.parameters !=null){

                this._command = config.parameters.command;

            }else{

                this._command = "misctools#specialchars";

           }

    this worked for me with my project package.

    Thank you.

    4 replies

    A
    akashdeepAEMAuthorAccepted solution
    New Participant
    November 27, 2018

    Thank you friends,

    I tried on a vanila instance and it did work for me, could be something to do with my project package.
    As a temporary fix may be we just need to overlay to specify command as below :
    /clientlibs/granite/richtext/js/rte/ui/dialogs/AbstractBaseDialog.js

    attach: function (config, $container, editorKernel, enforceCreation) {

            if(config.parameters != undefined && config.parameters !=null){

                this._command = config.parameters.command;

            }else{

                this._command = "misctools#specialchars";

           }

    this worked for me with my project package.

    Thank you.

      GaneshM
      GaneshM
      New Participant
      November 26, 2018

      Hi,

      Here is sample UI settings xml,

      <?xml version="1.0" encoding="UTF-8"?>

      <jcr:root xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"

          jcr:primaryType="nt:unstructured">

          <cui jcr:primaryType="nt:unstructured">

              <dialogFullScreen

                  jcr:primaryType="nt:unstructured"

                  toolbar="[format#bold,format#italic,#justify,#lists,links#modifylink,links#unlink,links#anchor,#paraformat,edit#cut,edit#copy,edit#paste-default,edit#paste-wordhtml,edit#paste-plaintext,spellcheck#checktext,subsuperscript#subscript,subsuperscript#superscript,undo#undo,undo#redo,findreplace#find,findreplace#replace,misctools#specialchars,#CUSTOMstyles,table#createoredit]">

                  <popovers jcr:primaryType="nt:unstructured">

                      <CUSTOMstyles

                          jcr:primaryType="nt:unstructured"

                          items="CUSTOMstyles:getStyles:CUSTOMstyles-pulldown"

                          ref="CUSTOMstyles"/>

                  </popovers>

              </dialogFullScreen>

          </cui>

      </jcr:root>

      I haven't define any popovers for special charas, OOTB should be work fine but Please make sure  your plug-in name and name in the popovers should be identical.

      Thanks!

        smacdonald2008
        smacdonald2008
        New Participant
        November 26, 2018

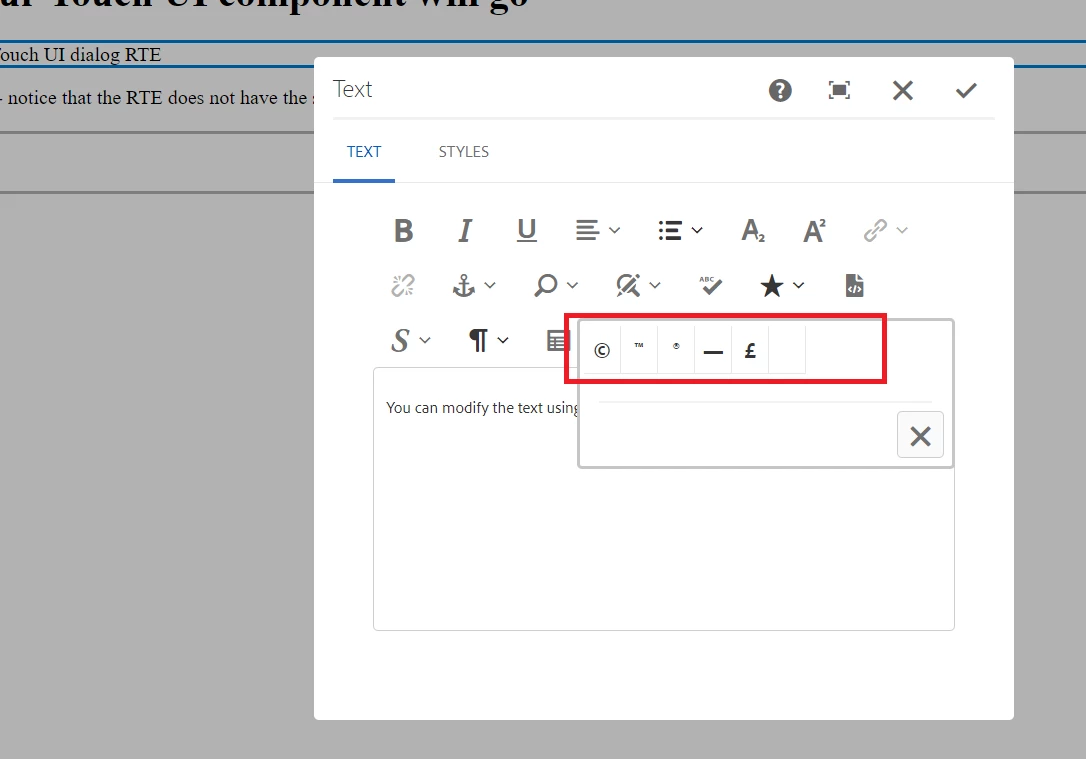

        It working fine for me on 6.3 - see:

        vipins5188
        vipins5188
        New Participant
        November 26, 2018

        Hi Akashdeep,

        It is working fine with 6.4 , we have this tested the same and implemented

        Please make sure you have proper structured created for misctools.
