sandeepKV31
New Participant
Sep 27, 2018 10:19 PM UTC

AEM pdf Raterization for pdf subassets

Hello there,

I'm currently running AEM 6.3 and trying to Implement PDF rasterization as instructed here : https://helpx.adobe.com/experience-manager/6-4/assets/using/aem-pdf-rasterizer.html

I'm currently blocked by command which is throwing an expection as below  :

'ERROR* [JobHandler: /etc/workflow/instances/server0/2018-09 27_1/createsubassets_89:/content/dam/corporate/creative/us/CP999/20017361_Creative.pdf/subassets/page2.pdf/jcr:content/renditions/original] com.day.cq.dam.pdfrasterizer.process.PdfRasterizerHandlingProcess execute: failed to execute command [[/opt/aem/crx-quickstart/launchpad/felix/bundle539/data/binaries/PDFRasterizer, -d, -p, *, -s, 1280]] for asset [/content/dam/amex/creatives/us/Folder/Creative.pdf/subassets/page2.pdf]'

After debugging the above looks like the command where its being executed is different from the path that AEM is installed on my machine.

Machine AEM Path :

/Users/SandeepKV/static-author/one-cms/crx-quickstart/logs

Command Execution Path :

/opt/aem/crx-quickstart/launchpad/felix/bundle539/data/binaries/PDFRasterizer, -d, -p, *, -s, 1280


Is there a way to change the path from where the above workflow command can be triggered, if not what the best solution in this regards

Please Advice.

Best
Sandeep KV

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

    5 replies

    shroti
    Employee
    Oct 4, 2018 5:39 AM UTC

    Hi Sandeep,

    Can you confirm if the following path exists and can be executed through terminal?

    "/opt/aem/crx-quickstart/launchpad/felix/bundle539/data/binaries/PDFRasterizer, -d, -p, *, -s, 1280 "

    If yes, please check how many AEM processes running at your instance. And also confirm your environment (Linux or Mac)?

    Thanks,

    Ashutosh

    Translate
    sandeepKV31Author
    New Participant
    Oct 4, 2018 7:33 PM UTC

    Hi Ashutosh,

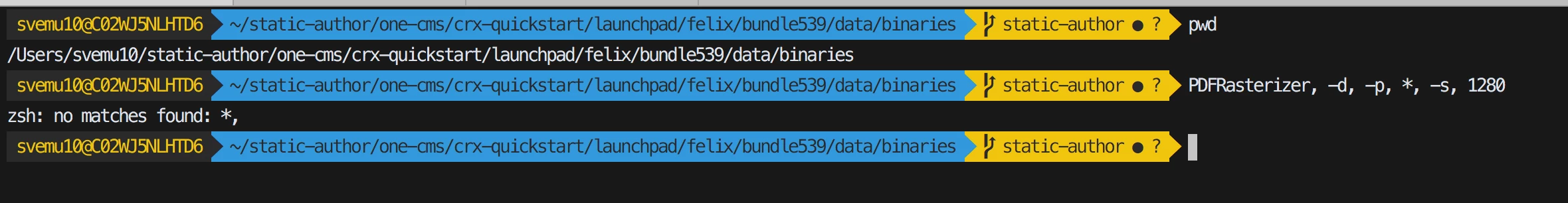

    The above path does exist, however doesn't execute through terminal as below :

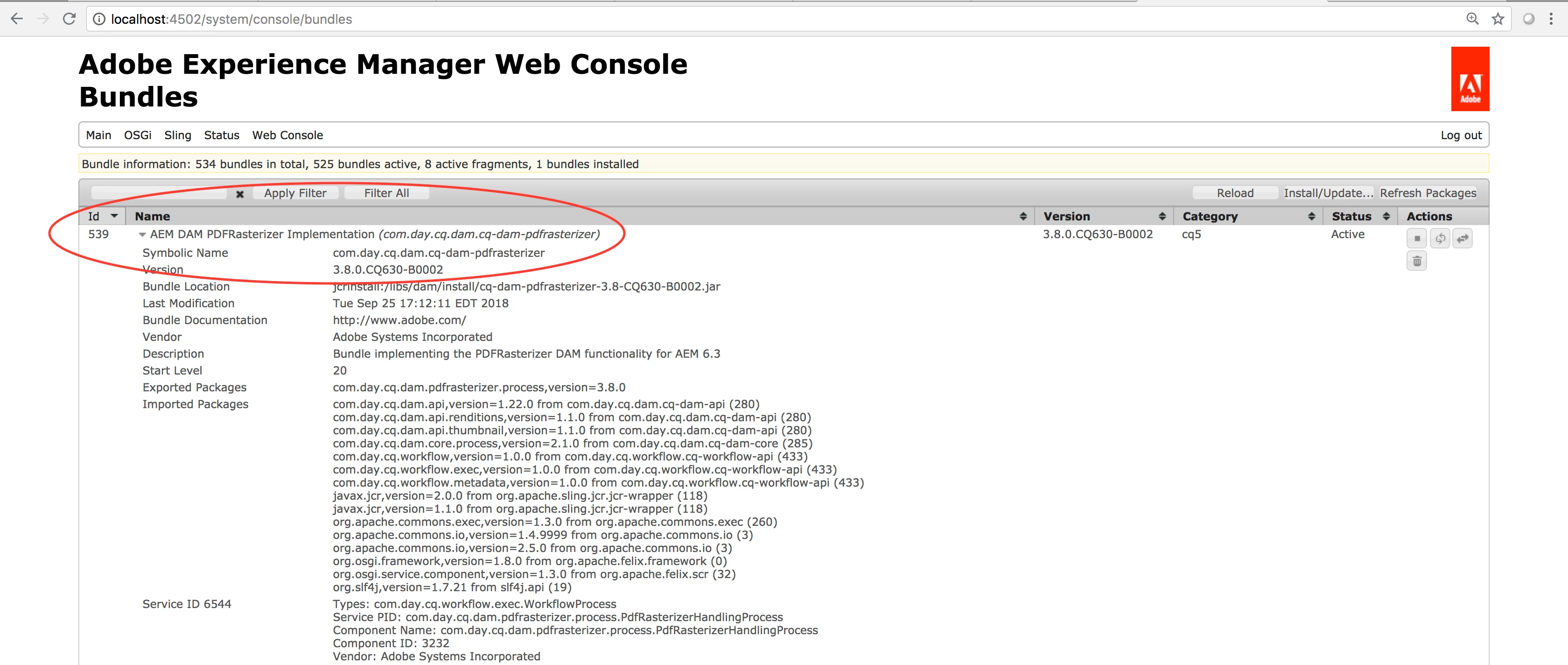

    Also the package is visible here in my AEM web-console :

    Also, I'm running only one instance (Static-author) on MAC OS.

    Thanks
    Sandeep KV

    Translate
    shroti
    Employee
    Oct 5, 2018 5:16 AM UTC

    Hi Sandeep,

    Also it is worth to check the MAC os version, the PDF rasterizer is not supported for Mac OS. See below

    Technical Requirements

    Thanks,

    Ashutosh

    Translate
    smacdonald2008
    smacdonald2008
    Level 10
    Sep 27, 2018 10:33 PM UTC

    We asked the Asset team to help here.
