AEM SAML Configuration in code repository

11 replies
7754 views
Translate

I configured AEM SAML integration on author instance and it just works fine. Now this was time to put the config in code repository. So:

1. I put that config in the code repository (at /apps/<project-folder>/config.author.dev/com.adobe.granite.auth.saml.SamlAuthenticationHandler-myproject.xml

2. Deleted the manually created SAML configuration in Felix Console.

2. Performed a build

3. I see the SAML config added by code

4. I hit Author URL and it doesn't take me to IDP login page.

5. I go to felix, open SAML config, click Save (without touching anything else)

6. I hit Author URL again and now it takes me to IDP login page.

Any reason?

Thanks in advance!!

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

pankajrohiraAccepted solution

Level 2

Hi Kunal,

The jcr:data structure, I meant if you are directly adding this file in CRXDE temporarily for testing. But in order to add this file into code base, you can create it as a "regular" file.

1. Name the file as: "com.adobe.granite.auth.saml.SamlAuthenticationHandler-<Project_Identifier>.config" (Make sure it is a regular file in Eclipse or IntelliJ); no need to add extension ".xml" at the end.

2. Inside this file, just add the configuration like a regular text. Please see below:

# Configuration created by Apache Sling JCR Installer

keyStorePassword="keystorepass"

service.ranking=I"5002"

idpHttpRedirect=B"false"

createUser=B"true"

defaultRedirectUrl="/content/project/en/aem-assets.html"

userIDAttribute="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name"

assertionConsumerServiceURL=""

defaultGroups=["contributors"]

signatureMethod="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"

idpCertAlias="certalias___xxxxxxxxxxxx"

addGroupMemberships=B"true"

path=["/content/projects"]

digestMethod="http://www.w3.org/2001/04/xmlenc#sha256"

synchronizeAttributes=""

clockTolerance=I"60"

groupMembershipAttribute="groupMembership"

idpUrl="IDP URL GOES HERE"

logoutUrl="logouturl"

serviceProviderEntityId="service_provider_entity_id"

handleLogout=B"true"

spPrivateKeyAlias=""

useEncryption=B"false"

nameIdFormat="urn:oasis:names:tc:SAML:2.0:nameid-format:transient"

You can also copy the content of the file from CRXDE, after you manually save the OSGi config thru /system/console/configMgr.

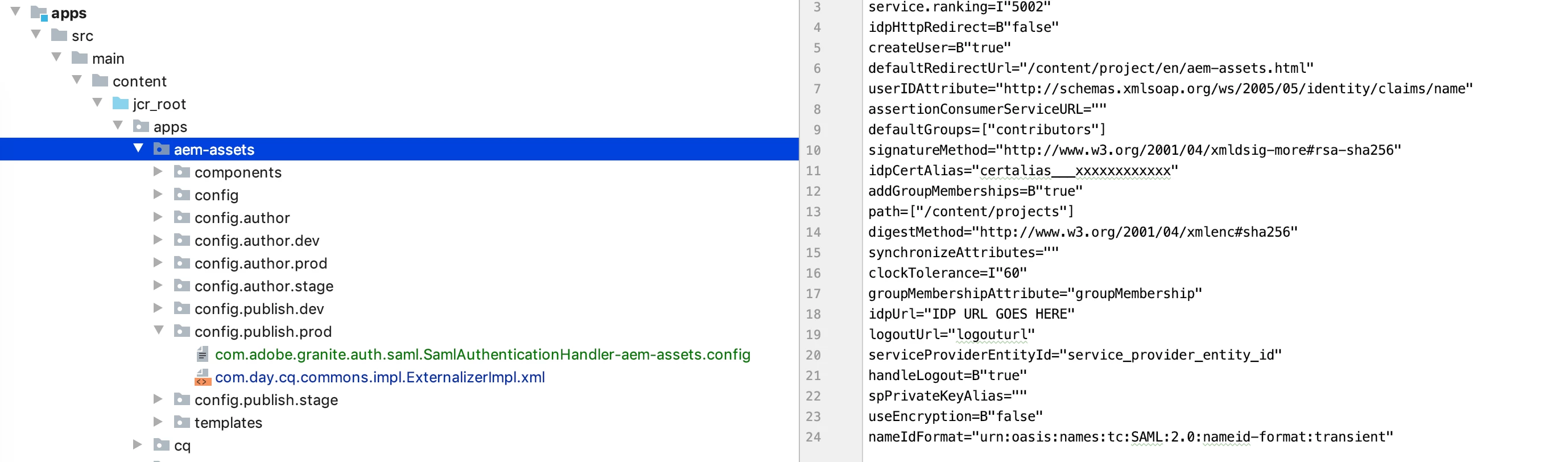

Please see the attached screen-shot. You can clearly see the difference between a regular file and a sling:osgiConfig file (com.day.cq.commons.impl.ExternalizerImpl.xml).

Thanks.

kunalm

Level 2

Hi Pankaj,

Thanks for the detailed reply. I was able to register the config from code using the method you described above. You can mark your response as the correct answer.

Thanks,

Kunal

Translate

pankajrohiraAuthorAccepted solution

Level 2

Hi Kunal,

The jcr:data structure, I meant if you are directly adding this file in CRXDE temporarily for testing. But in order to add this file into code base, you can create it as a "regular" file.

1. Name the file as: "com.adobe.granite.auth.saml.SamlAuthenticationHandler-<Project_Identifier>.config" (Make sure it is a regular file in Eclipse or IntelliJ); no need to add extension ".xml" at the end.

2. Inside this file, just add the configuration like a regular text. Please see below:

# Configuration created by Apache Sling JCR Installer

keyStorePassword="keystorepass"

service.ranking=I"5002"

idpHttpRedirect=B"false"

createUser=B"true"

defaultRedirectUrl="/content/project/en/aem-assets.html"

userIDAttribute="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name"

assertionConsumerServiceURL=""

defaultGroups=["contributors"]

signatureMethod="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"

idpCertAlias="certalias___xxxxxxxxxxxx"

addGroupMemberships=B"true"

path=["/content/projects"]

digestMethod="http://www.w3.org/2001/04/xmlenc#sha256"

synchronizeAttributes=""

clockTolerance=I"60"

groupMembershipAttribute="groupMembership"

idpUrl="IDP URL GOES HERE"

logoutUrl="logouturl"

serviceProviderEntityId="service_provider_entity_id"

handleLogout=B"true"

spPrivateKeyAlias=""

useEncryption=B"false"

nameIdFormat="urn:oasis:names:tc:SAML:2.0:nameid-format:transient"

You can also copy the content of the file from CRXDE, after you manually save the OSGi config thru /system/console/configMgr.

Please see the attached screen-shot. You can clearly see the difference between a regular file and a sling:osgiConfig file (com.day.cq.commons.impl.ExternalizerImpl.xml).

Thanks.

Translate

kunalm22890025

New Participant

Hi Pankaj,

I'm performing the final step as you mentioned "jcr:data" which contains a file with all the configuration details."

Would you be able to tell me if there is any syntax I need to follow to put all the SAML configurations in the jcr:data file?

Thanks

Translate

arunpatidar

New Participant

Hi,

How did you added SAML config in the repository?

1. you need to create sling:OsgiConfig node type and create properties.

2. Do not update repository config from web console, if you do then it won"t be repository config, it will be converted into web console-based config (sling:OsgiConfig) will be converted into nt:file.

I recently implemented SAML using repository based config.

Translate

Arun Patidar

pankajrohiraAuthor

Level 2

Yes, I had appended custom pid.

Translate

kunalm

Level 2

Hi Pankaj,

Thanks for your reply. I do see the config come into effect when manually saved in the Felix console. I'll try out the steps you've provided to see if they work for me.

Did you append a custom pid to your config like com.adobe.granite.auth.saml.SamlAuthenticationHandler-myproject.xml or let it be com.adobe.granite.auth.saml.SamlAuthenticationHandler.xml?

Translate

pankajrohiraAuthor

Level 2

Hi Kunal,

Do you see the OSGi config coming into effect after you open the OSGi config and click on 'Save'?

If yes, then please try below solution (I had created a daycare ticket at that time and was suggested below solution):

For this particular scenario, I was asked to not to save the OSGi config as "sling:osgiConfig" in code repo rather as "nt:file" (the one it creates once you save the OSGi config through /system/console/configMgr).

You would need to define your OSGi config file with jcr:primaryType=nt:file with a sub-node "jcr:content" with jcr:primaryType="nt:resource" and "jcr:data" which contains a file with all the configuration details.

Thanks, Pankaj

Translate

kunalm

Level 2

Were you able to fix this issue? I'm facing the same problem of the OSGi config not coming into effect when deployed from code

Translate

pankajrohiraAuthor

Level 2

Hi Kautuk, did you understand my question? I mentioned that SAML configuration worked as expected. It's just that when I add that in my code repo, it doesn't come into affect. The articles you provided they talk more about configuring SAML.

Translate

navinkaushal

Level 4

The OSGI config is picked in this order:

1. From OSGI Config Setting

2. Config settings given from /apps/<project-folder>/config.author.dev/com.adobe.granite.auth.saml.SamlAuthenticationHa ndler-myproject.xml

3. <cq-installation-dir>/crx-quickstart/launchpad/config/

My Guess is you have some default config in 1st place which is picked up and when you save again from your deployed configuration then it refreshes and take place.

Please check if this helps
