[Angular] Text and Image Components are not visible in authoring mode when trying with AEM SPA Editor

Question

Local EnvironmentBefore filing an issue verify that the prerequisite tools/software are installed:AEM 6.4 + SP2Java 1.8Apache Maven 3.3.9 Node.js v10.16.1npm 6.9.0The issueText and Image Components are not visible in authoring mode. And I am not able to see the components in the side panel as well. The interesting thing is that there are no errors in Chrome's dev tools while loading the URL http://localhost:4502/editor.html/content/wknd-events/angular/home.htmlWhere in the tutorial are you experiencing an issue?In Chapter 3 while reviewing the Text and Image components in AEM

Nikhil-Kumar · Accepted Answer

@tinoymthms

As Editable templates were not supported in AEM 6.4.2 (But now supported with AEM 6.5.5).
So the issue might be your component wont be the part of the Policies.
So to access policies you need to access it from Editable templates but as that option is not available in AEM 6.4.2 with SPA.
In this case you need to navigate under /conf folder to the node where policies are stored and you need to add as part of policies manually.

NOTE: In AEM 6.5.5 Onwards this issue can be handled straight forward.

Thanks,
Nikhil

ArpitVarshney · Answer

Hi @tinoymthms

Could you please check your template on whether those components have been allowed in the layout container or not?

If not, please add them so that it will start appearing on the pages using that template for that layout container.

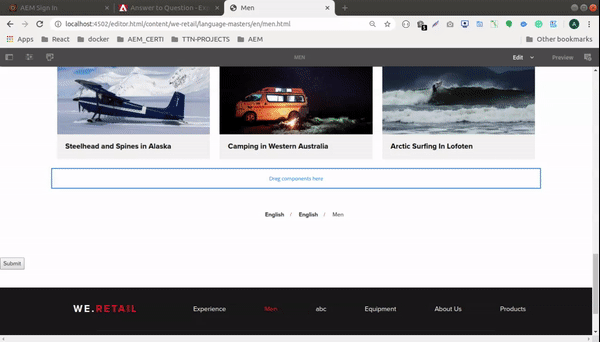

To add General Image and text component, Follow the below steps in GIF:

Regards,

Arpit
