Bullet(lists) is not rendering in the page while clicking the save button.

10 replies
6654 views
Translate

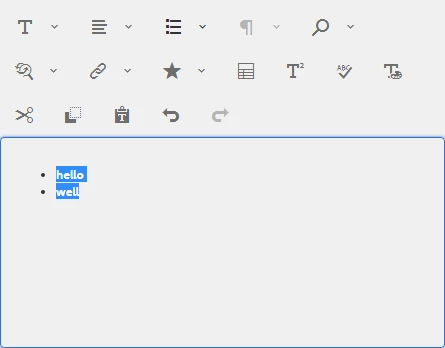

I have developed tabbed module component in AEM 6.5.When I have selected the bullet point in any text then it has appear in the dialog but when clicked the save then bullet points are not rendered to the page. PFB Screenshot.

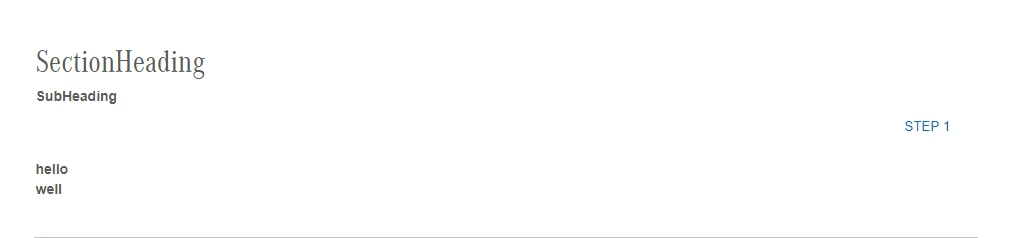

When I clicked the save button bullets points not rendered to the page.

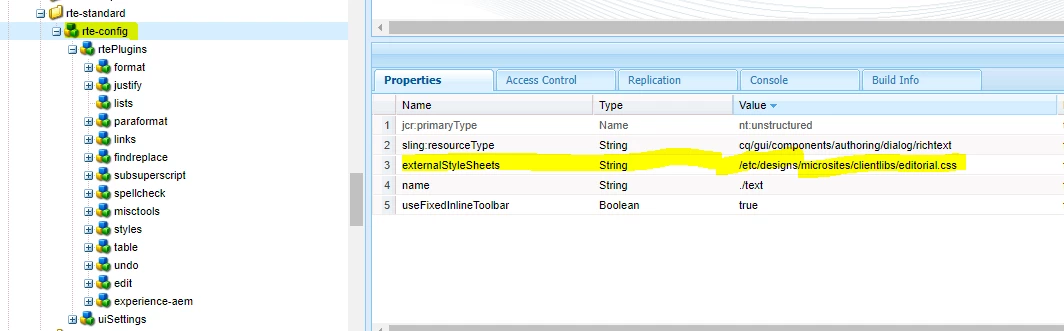

node structure of rte-Config:

When I have seen this rte-Config node here externalStyleSheets presented and when I went to this path (/etc/design/microsites/clientlibs/editorial.css )no editorial.css presented.I think styled property has applied in editorial.css but from where I found this file.

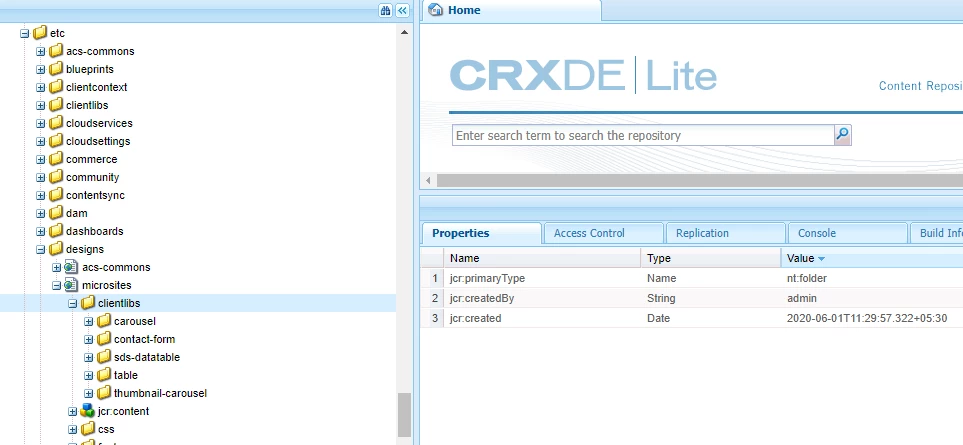

In above image(inside clientlibs) no editorial.css folder presented.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Nupur_JainAccepted solution

Employee

Hi @kkhan_123

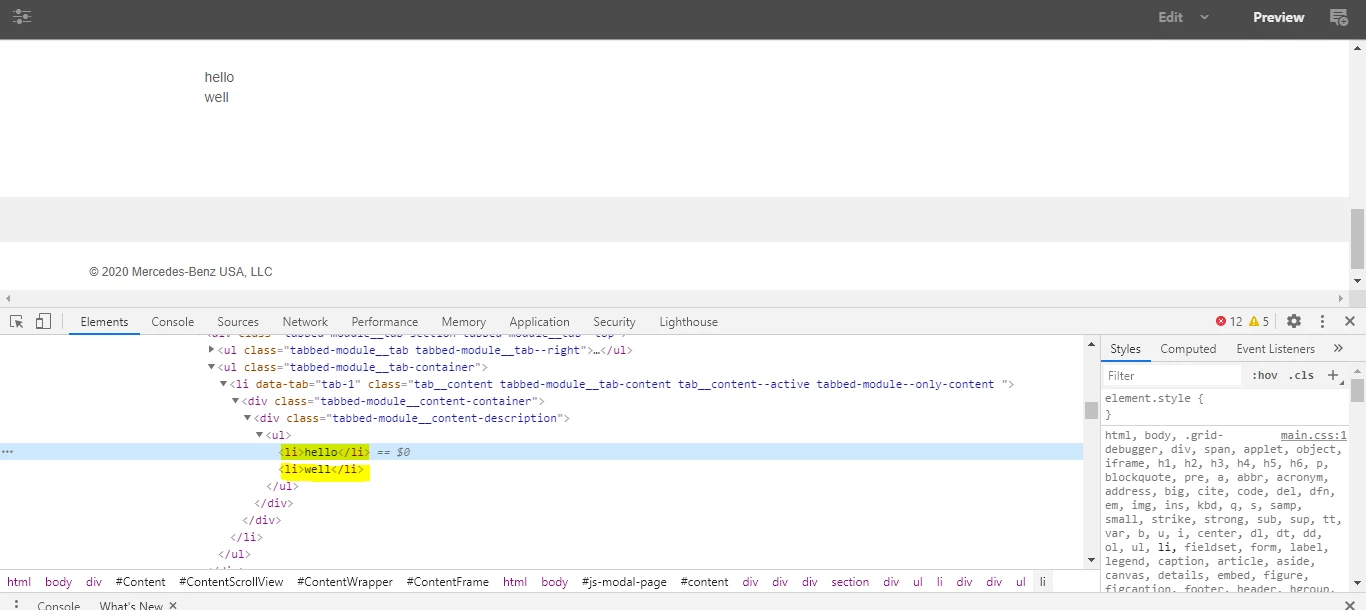

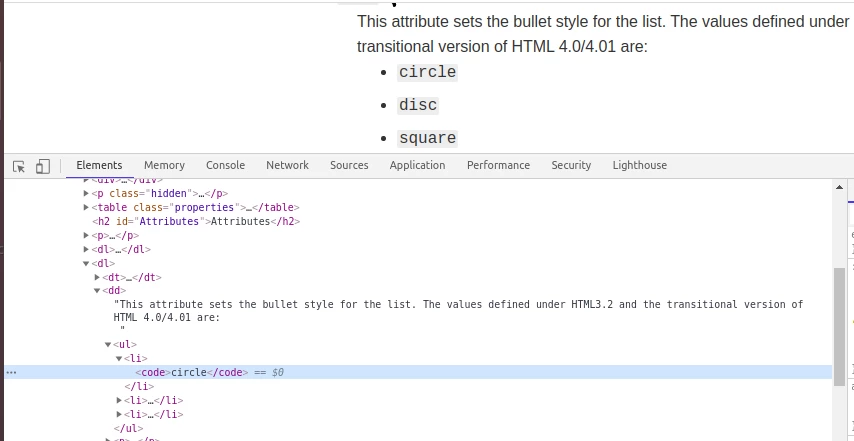

Can you inspect this page and send me the final html rendered from element section of developers tool like given in below screenshot:

Thanks,

Nupur

VeenaVikraman

New Participant

@kkhan_123 I read your comments under my reply. Just replying here as it might be visible and might help other too. When working with CSS , you have to be careful about few things

Never modify styles under generic tags . For eg, if you have a css style

ul {
  list-style-type: circle;
}

never modify that directly as it will affect all the ul tags in your page. Rather to work with any specific ul tag issue , give a class name or identify a unique reference for the tag in question and apply the styles only to that

For e.g. In your case your ul tag has a class="featured-list__list-container" so , you can add a style like below to make the bullets appear

.featured-list__list-container ul {
  list-style-type: circle;
}

Hope this is your issue and will solve it.

Veena ✌

Translate

VeenaVikraman

New Participant

As @nupur_jain mentioned, the issue is with the site specific CSS overriding the ul and li stlyes. To check that please do the below steps

Click inspect element

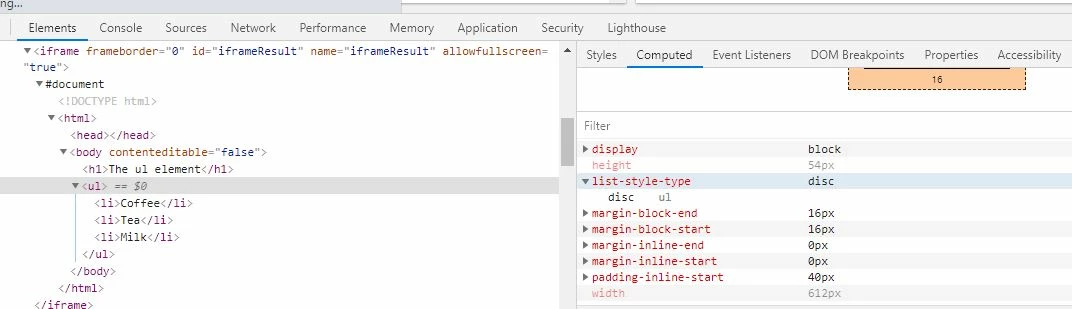

Highlight your ul tag , and on the right side , check the computed styles tab. There you should see list-style-type , if you click that it will tell you exactly which is the last CSS style which is getting rendered. I will also show you styles which are overridden by a strike-off mark.
If you don't find anything on ul tag, do the same with li tag . This will help you find the exact CSS which is overriding your CSS

Hope this helps. Happy Developing 🙂

Veena ✌

Translate

K

kkhan_123Author

Level 3

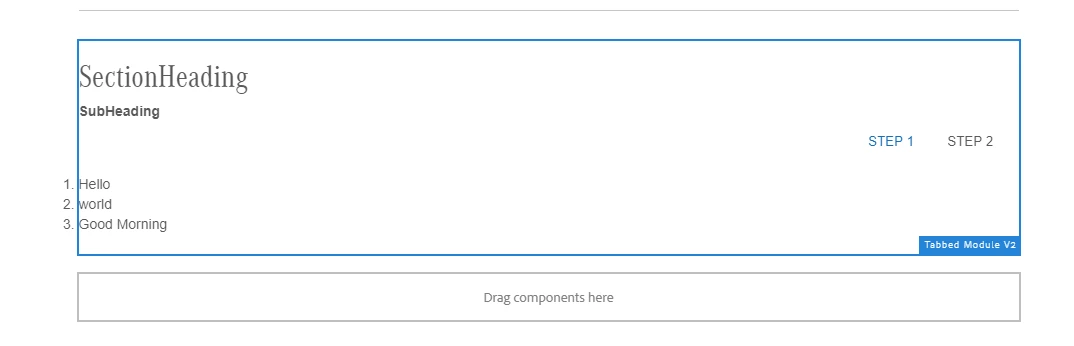

Hi @veenavikraman, @nupurjain, found main.css when I have highlighted the ul tag and when I remove the ul { list-style-type: none; } none option here then the bullet is reflecting properly in page but outside the dialog-box. PFB Details.

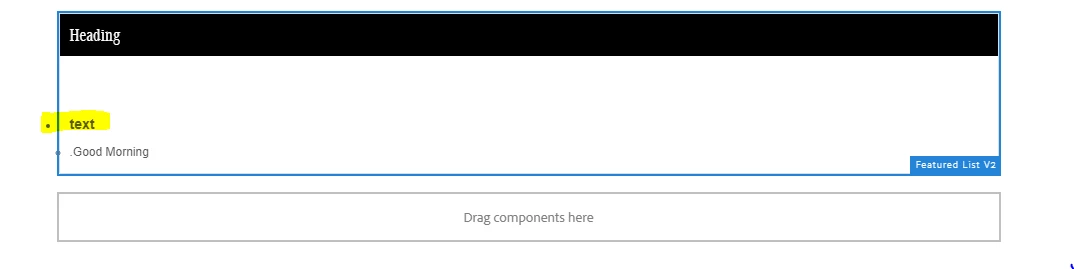

and it is reflecting the some other component instead of rte(lists).PFB Details.

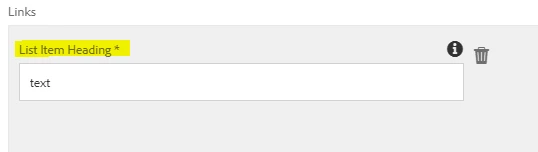

in this field text there is no rte bullet points is present it is only a heading.

when i save the dialog then a bullet point came in heading also.

my doubt is that In rte-Config on externalstylesheet path is present but when i am going to that path(/etc/designs/microsites/clientlibs/editorial.css) there is no editorial.css is present,If i can make a css file in that path then problem might be solve.
