Curl Command to start a workflow on a DAM Asset

  • June 30, 2022
  • 2 replies
  • 1469 views

Hi, I'm trying to run Scene7 workflow on DAM Asset via curl command.
Command:

curl -u admin:admin -H User-Agent:curl -F "payload=/content/aemdesign-showcase/images/publications/demo-video-848x477.jpg" -F "payloadType=JCR_PATH" -F "workflowTitle=CurlTitle" -F "startComment=CurlComment" -F "model=/var/workflow/models/Scene7" http://192.168.27.2:4502/etc/workflow/instances

I am getting responses as
1. Workflow model not found
OR

2.
<td>Status</td>
<td><div id="Status">500</div></td>
</tr>
<tr>
<td>Message</td>
<td><div id="Message">java.lang.IllegalArgumentException: Value for key payload can&apos;t be put into node: /content/aemdesign-showcase/images/publications/demo-video-848x477.jpg</div></td>
</tr>
Reference link used:
https://github.com/paulrohrbeck/aem-links/blob/master/curl_cheatsheet.md


Any thoughts on this?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by ShaileshBassi

@user21583 Yes, I have tried that for assets as well. It is also working for me. PFB for the screenshot. Same command but now this time, the path is for asset.

curl -u admin:admin -H User-Agent:curl -F "payload=/content/dam/sample.png" -F "payloadType=JCR_PATH" -F "workflowTitle=CurlTitle" -F "startComment=CurlComment" -F"model=/var/workflow/models/form-workflow-model" http://localhost:4502/etc/workflow/instances



2 replies

SantoshSai
SantoshSai
New Participant
June 30, 2022

Hi @user21583 ,

Could you tell us what version of AEM you are using? If it's AEM 6.5, I believe you are aware of Common Repository Restructuring in AEM 6.5 for Workflow Instances

Previous location
/etc/workflow/instances

New location(s)
/var/workflow/instances

Also, please verify if your workflow model exists at the location you are trying to hit curl on.
Hope that helps!

Regards,

Santosh

Santosh Sai
    U
    user21583Author
    New Participant
    July 1, 2022

    Thank you for the input @santoshsai , we use 6.5.10.

    The above command worked for me after whitelisting my public IPs appropriately.

      ShaileshBassi
      ShaileshBassi
      New Participant
      June 30, 2022

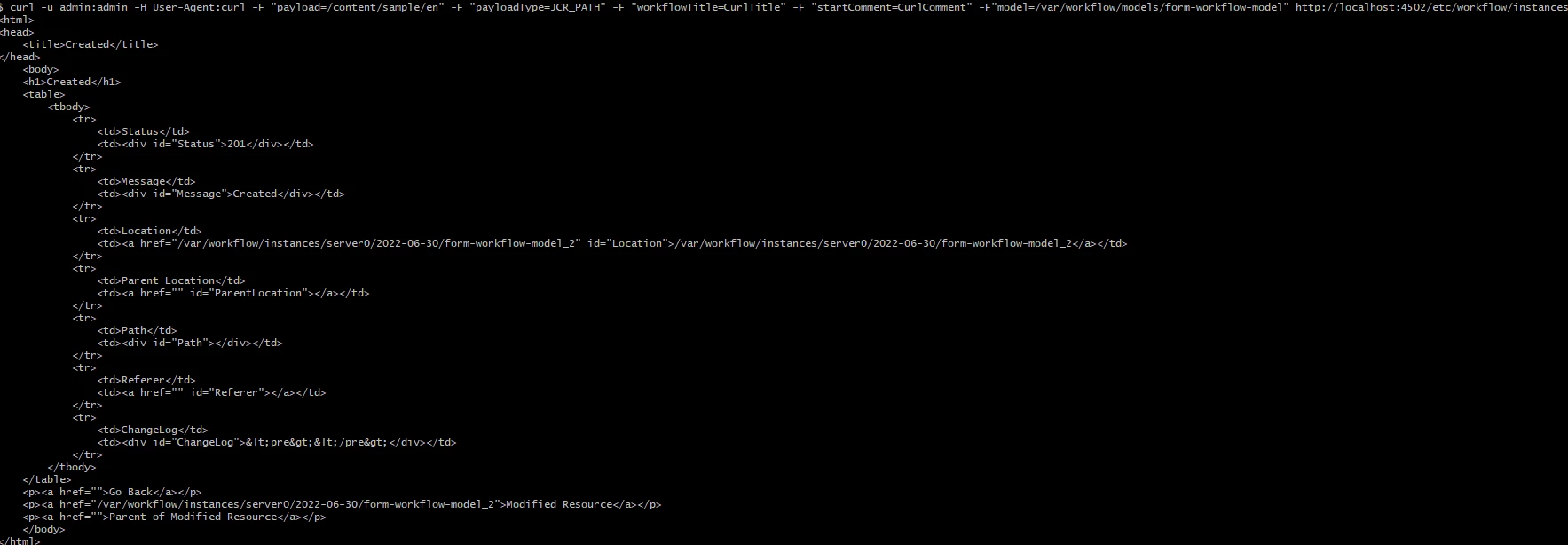

      @user21583 PFB for the command for starting the workflow

      curl -u admin:admin -H User-Agent:curl -F "payload=/content/sample/en" -F "payloadType=JCR_PATH" -F "workflowTitle=CurlTitle" -F "startComment=CurlComment" -F"model=/var/workflow/models/form-workflow-model" http://localhost:4502/etc/workflow/instances

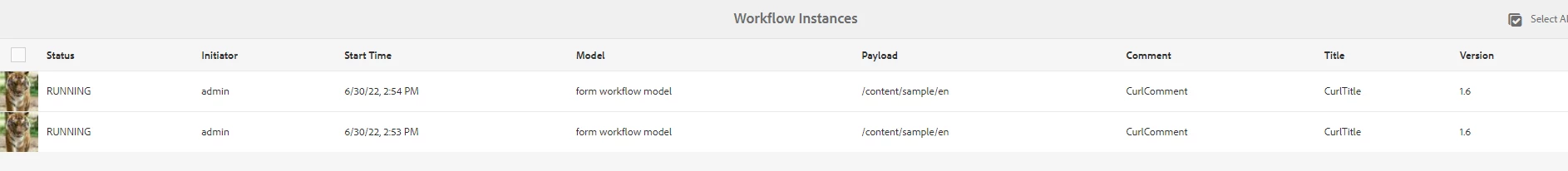

      I will getting the workflow started after hitting the curl command

      Hope this helps.

      Thanks





        U
        user21583Author
        New Participant
        June 30, 2022

        Hi @shaileshbassi ,

        You are trying for a page.. could you please try for a DAM Asset?

          ShaileshBassi
          ShaileshBassiAccepted solution
          New Participant
          June 30, 2022

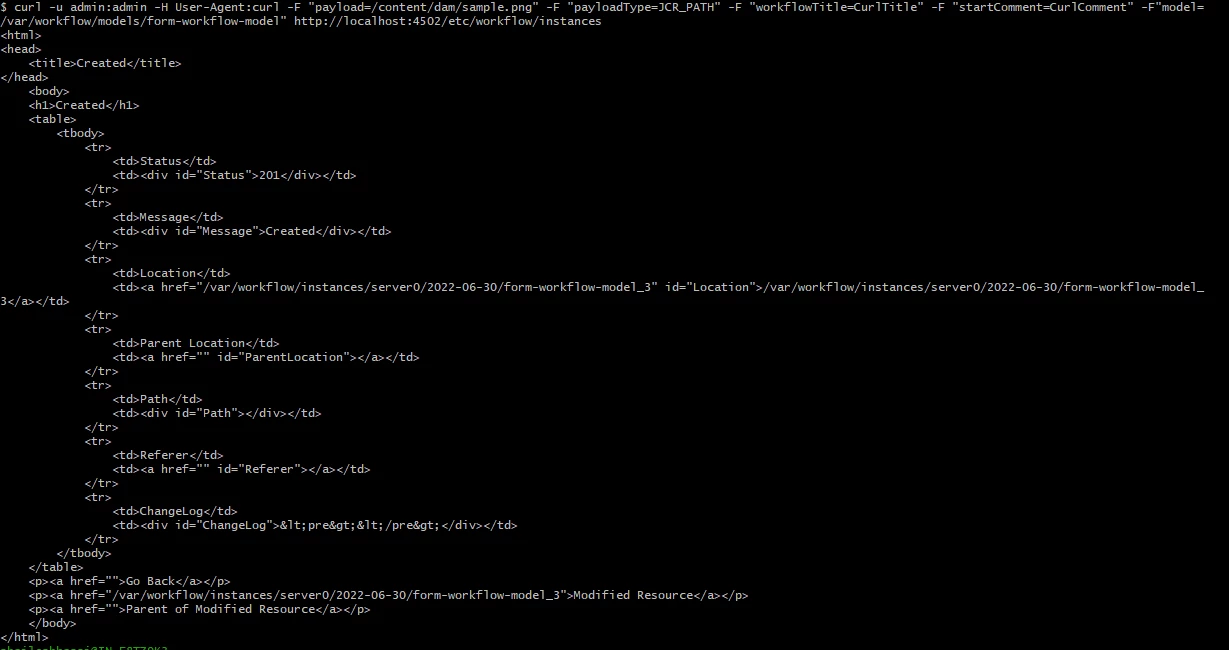

          @user21583 Yes, I have tried that for assets as well. It is also working for me. PFB for the screenshot. Same command but now this time, the path is for asset.

          curl -u admin:admin -H User-Agent:curl -F "payload=/content/dam/sample.png" -F "payloadType=JCR_PATH" -F "workflowTitle=CurlTitle" -F "startComment=CurlComment" -F"model=/var/workflow/models/form-workflow-model" http://localhost:4502/etc/workflow/instances
