Solved
Custom Content fragment model showing extra input field (edited XML)
Hi all,

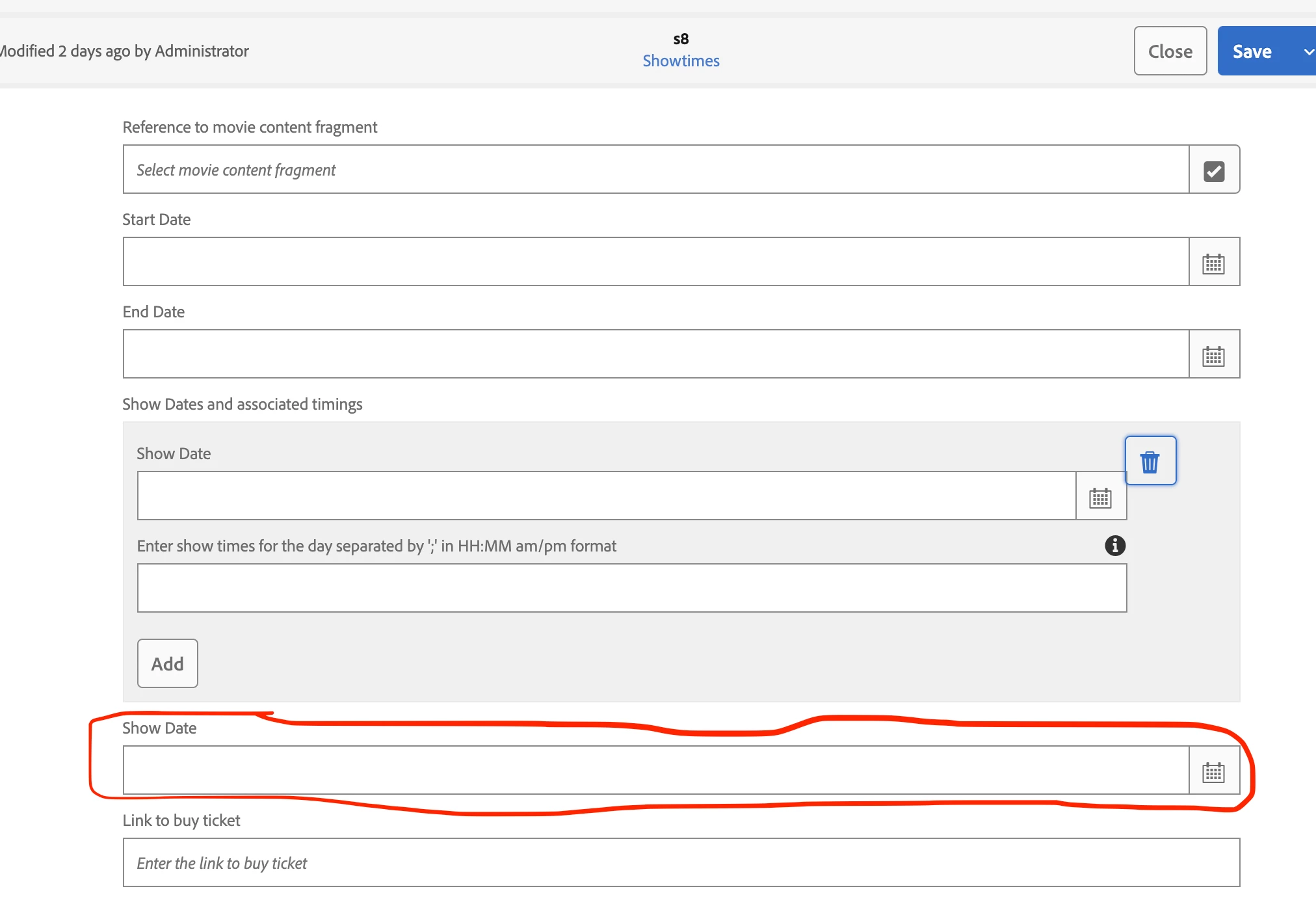

I have created a content fragment model and added a multifield via XML. The issue is I'm getting an additional input field which is not needed(also not added intentionally).
Here's the content.xml :
<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:granite="http://www.adobe.com/jcr/granite/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
jcr:primaryType="cq:Template"
allowedPaths="[/content/entities(/.*)?]"
ranking="{Long}100">
<jcr:content
cq:scaffolding="/conf/mycompany/settings/dam/cfm/models/showtimes/jcr:content/model"
cq:templateType="/libs/settings/dam/cfm/model-types/fragment"
jcr:primaryType="cq:PageContent"
jcr:title="Showtimes"
sling:resourceSuperType="dam/cfm/models/console/components/data/entity"
sling:resourceType="dam/cfm/models/console/components/data/entity/default"
status="enabled">
<metadata jcr:primaryType="nt:unstructured">
<graphQL
jcr:primaryType="nt:unstructured"
apiName="ShowtimesModel"
queryFieldMultiple="showtimesList"
queryFieldSingle="showtimesByPath"/>
</metadata>
<model
cq:targetPath="/content/entities"
jcr:primaryType="cq:PageContent"
sling:resourceType="wcm/scaffolding/components/scaffolding"
dataTypesConfig="/mnt/overlay/settings/dam/cfm/models/formbuilderconfig/datatypes"
maxGeneratedOrder="20">
<cq:dialog
jcr:primaryType="nt:unstructured"
sling:resourceType="cq/gui/components/authoring/dialog">
<content
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
<items
jcr:primaryType="nt:unstructured"
maxGeneratedOrder="20">
<referenceToMovieContentFragment
jcr:primaryType="nt:unstructured"
sling:resourceType="dam/cfm/models/editor/components/fragmentreference"
allowNew="{Boolean}false"
emptyText="Select movie content fragment"
fieldLabel="Reference to movie content fragment"
filter="hierarchy"
fragmentmodelreference="/conf/mycompany/settings/dam/cfm/models/movie"
listOrder="9"
metaType="fragment-reference"
name="referenceToMovieContentFragment"
nameSuffix="contentReference"
renderReadOnly="false"
showEmptyInReadOnly="true"
valueType="string/content-fragment">
<field jcr:primaryType="nt:unstructured"/>
<granite:data jcr:primaryType="nt:unstructured"/>
</referenceToMovieContentFragment>
<startDate
jcr:primaryType="nt:unstructured"
sling:resourceType="dam/cfm/models/editor/components/datatypes/datepicker"
displayedFormat="YYYY-MM-DD"
fieldLabel="Start Date"
listOrder="5"
metaType="date"
name="startDate"
renderReadOnly="false"
showEmptyInReadOnly="true"
type="date"
valueFormat="YYYY-MM-DD"
valueType="calendar/date">
<granite:data
jcr:primaryType="nt:unstructured"
typeHint="Date"/>
</startDate>
<endDate
jcr:primaryType="nt:unstructured"
sling:resourceType="dam/cfm/models/editor/components/datatypes/datepicker"
displayedFormat="YYYY-MM-DD"
fieldLabel="End Date"
listOrder="5"
metaType="date"
name="endDate"
renderReadOnly="false"
showEmptyInReadOnly="true"
type="date"
valueFormat="YYYY-MM-DD"
valueType="calendar/date">
<granite:data
jcr:primaryType="nt:unstructured"
typeHint="Date"/>
</endDate>
<showDatesAndAssociatedTimings
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
composite="{Boolean}true"
emptyText="Enter show dates and associated timings"
fieldLabel="Show Dates and associated timings"
listOrder="1"
maxlength="255"
metaType="text-single"
name="showDatesAndAssociatedTimings"
renderReadOnly="false"
showEmptyInReadOnly="true"
valueType="string[]">
<field
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container"
name="./showDatesAndAssociatedTimings">
<items jcr:primaryType="nt:unstructured">
<column
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">

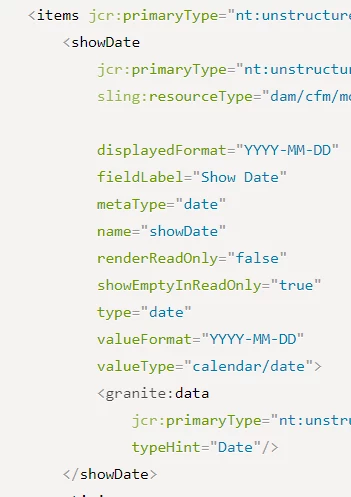

<showDate
jcr:primaryType="nt:unstructured"
sling:resourceType="dam/cfm/models/editor/components/datatypes/datepicker"
displayedFormat="YYYY-MM-DD"
fieldLabel="Show Date"
metaType="date"
name="showDate"
renderReadOnly="false"
showEmptyInReadOnly="true"
type="date"
valueFormat="YYYY-MM-DD"
valueType="calendar/date">
<granite:data
jcr:primaryType="nt:unstructured"
typeHint="Date"/>
</showDate>
<timings
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
fieldDescription="e.g. 9:30 am;12:30 pm;"
fieldLabel="Enter show times for the day separated by ';' in HH:MM am/pm format"
maxlength="255"
name="timings"
renderReadOnly="false"
validation="cfm.validation.custom">
<granite:data
jcr:primaryType="nt:unstructured"
validationRegex="(\\d\\d:\\d\\d\\s\\w\\w;)"/>
</timings>
</items>
</column>
</items>
</field>
<granite:data jcr:primaryType="nt:unstructured"/>
</showDatesAndAssociatedTimings>
<linkToBuyTicket
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
emptyText="Enter the link to buy ticket"
fieldLabel="Link to buy ticket"
listOrder="1"
maxlength="255"
metaType="text-single"
name="linkToBuyTicket"
renderReadOnly="false"
showEmptyInReadOnly="true"
valueType="string">
<granite:data jcr:primaryType="nt:unstructured"/>
</linkToBuyTicket>
</items>
</content>
</cq:dialog>
</model>
</jcr:content>
</jcr:root>
