Customize Rendition - Add new rendition for image

Hi,

I have a question regarding adding new rendition for image (asset type: tiff and jpg).

I need to add new rendition of 370 x 208.

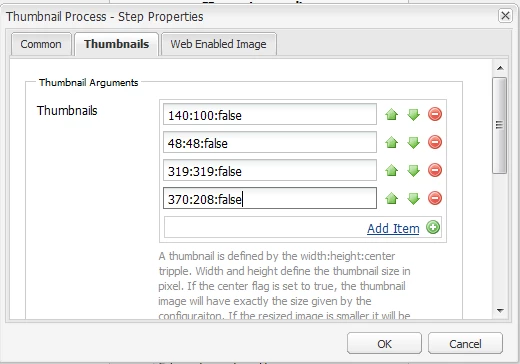

I configured the Thumbnail Arguments in the Process Thumbnails step[com.day.cq.dam.core.process.ThumbnailProcess]  in DAM Update Asset workflow. However it does not shown up in the rendition list for asset. Is there any additional step which I need to configure?

I am using AEM 6.1.

Please suggest.



Thanks,

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Anton_Smulskiy
    Anton_SmulskiyAccepted solution
    Level 3
    Oct 6, 2016 8:19 PM UTC

    Make sure that you saved the workflow model after your changes in the step.

    View reply

    4 replies

    pankajc20481189
    New Participant
    Jun 17, 2018 7:40 PM UTC

    Where did you get this UI of rendition list?MeenakshiP​

    Translate
    MeenakshiP
    MeenakshiPAuthor
    Level 3
    Oct 6, 2016 10:15 PM UTC

    Thanks it worked. Looks like it was not saved earlier.

    Translate
    Anton_Smulskiy
    Anton_SmulskiyAccepted solution
    Level 3
    Oct 6, 2016 8:19 PM UTC

    Make sure that you saved the workflow model after your changes in the step.

    Translate
    kautuk_sahni
    kautuk_sahni
    Employee
    Oct 6, 2016 11:38 AM UTC

    Please have a look at this community article:-

    Link:- http://www.tothenew.com/blog/exploration-of-aem-dam/

    // Custom Renditions

    Access the DAM update asset model from the workflow console (classic UI view steps listed below)

    • Access http://<host>:<port>/libs/cq/workflow/content/console.html
    • In the Models tab, double click on “DAM update asset” workflow.
    • Double click to edit the 14th workstep Processing Thumbnails. In the dialog box we can see under thumbnails tab some default resolution configurations in a multi-field, to which we can add or remove our custom resolution configuration too.
    • After adding the custom resolution, Click OK and save the workflow from top left and close the workflow console.
    • The custom rendition of the resolution that we added will now be generated for every asset that is uploaded in DAM.

    Another Reference article:- http://blogs.adobe.com/contentmanagement/tag/dam-update-asset/

    ~kautuk
