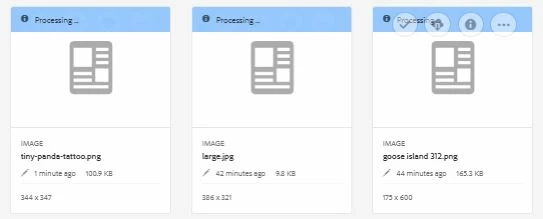

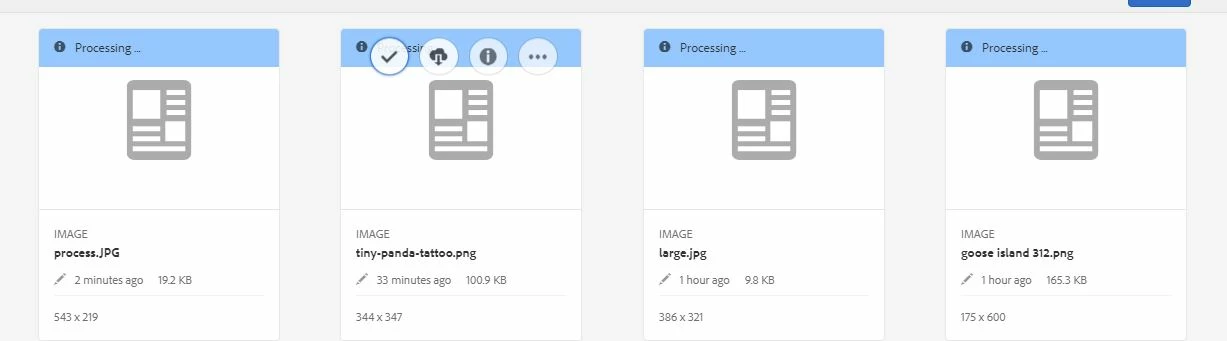

Customized workflow(Upload Dam Asset) showing the "Processing"

the root cause is mentioned in logs -- Unable to retrieve workflow instance: /etc/workflow/instances/server0/2019-02-22/update_asset_11

javax.jcr.PathNotFoundException: /etc/workflow/instances/server0/2019-02-22/update_asset_11

Could you check if the workflow instance exists at this path? If not, then you should figure out how/when/why was it deleted? In addition to that, you haven't enabled 'handler advance' hence the workflow couldn't proceed and got stuck. I assume that is done on-purpose for a specific requirement?

Try to run the workflow again and monitor ongoing execution & logs to get the next steps.

Hi smacdonald2008​ gauravb10066713​ ,

thanks for the reply to this thread!

yeah its customized and the workflow with default process and its fails in continueupload? step and getting  failure.

Error :

com.adobe.granite.workflow.WorkflowException: Process execution resulted in an error

at com.adobe.granite.workflow.core.job.HandlerBase.executeProcess(HandlerBase.java:199)

at com.adobe.granite.workflow.core.job.JobHandler.process(JobHandler.java:258)

at org.apache.sling.event.impl.jobs.JobConsumerManager$JobConsumerWrapper.process(JobConsumerManager.java:500)

at org.apache.sling.event.impl.jobs.queues.JobQueueImpl.startJob(JobQueueImpl.java:291)

at org.apache.sling.event.impl.jobs.queues.JobQueueImpl.access$100(JobQueueImpl.java:58)

at org.apache.sling.event.impl.jobs.queues.JobQueueImpl$1.run(JobQueueImpl.java:227)

at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)

at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)

at java.lang.Thread.run(Unknown Source)

Caused by: com.adobe.granite.workflow.WorkflowException: Failed to execute process

at com.day.cq.workflow.compatibility.CQWorkflowProcessRunner.execute(CQWorkflowProcessRunner.java:108)

at com.adobe.granite.workflow.core.job.HandlerBase.executeProcess(HandlerBase.java:189)

... 8 more

Caused by: com.day.cq.workflow.WorkflowException: com.day.cq.workflow.WorkflowException: Unable to retrieve workflow instance: /etc/workflow/instances/server0/2019-02-22/update_asset_11

at com.day.cq.dam.core.process.GateKeeperProcess.execute(GateKeeperProcess.java:84)

at com.day.cq.workflow.compatibility.CQWorkflowProcessRunner.execute(CQWorkflowProcessRunner.java:93)

... 9 more

Caused by: com.day.cq.workflow.WorkflowException: Unable to retrieve workflow instance: /etc/workflow/instances/server0/2019-02-22/update_asset_11

at com.day.cq.workflow.impl.CQWorkflowSessionWrapper.complete(CQWorkflowSessionWrapper.java:509)

at com.day.cq.dam.core.process.GateKeeperProcess.execute(GateKeeperProcess.java:72)

... 10 more

Caused by: javax.jcr.PathNotFoundException: /etc/workflow/instances/server0/2019-02-22/update_asset_11

at org.apache.jackrabbit.oak.jcr.session.SessionImpl.getItem(SessionImpl.java:361)

at com.adobe.granite.repository.impl.CRX3SessionImpl.getItem(CRX3SessionImpl.java:168)

at com.adobe.granite.workflow.core.jcr.WorkflowManager.getWorkflowNode(WorkflowManager.java:956)

at com.adobe.granite.workflow.core.jcr.WorkflowManager.getWorkflowInstance(WorkflowManager.java:125)

at com.adobe.granite.workflow.core.jcr.WorkflowManager.getWorkflowInstance(WorkflowManager.java:245)

at com.adobe.granite.workflow.core.WorkflowSessionImpl.completeInternal(WorkflowSessionImpl.java:1040)

at com.adobe.granite.workflow.core.WorkflowSessionImpl.complete(WorkflowSessionImpl.java:1032)

at com.day.cq.workflow.impl.CQWorkflowSessionWrapper.complete(CQWorkflowSessionWrapper.java:507)

... 11 more

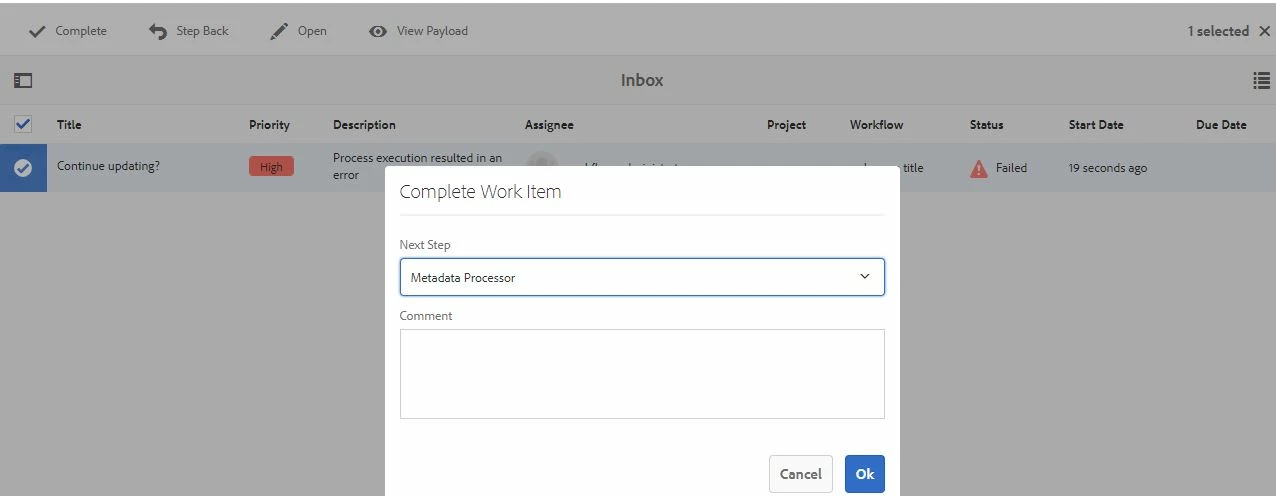

Could you check if your custom step has completed or stuck and has thrown errors in error.log?  Does that second screenshot relate to that error?  You'd have to share more details about your use case, implementation and the logs snippets.

Did you add any custom actions to this workflow? If so - your custom action may not have successfully completed.
