Dispatcher Cache Root in Local

  • March 28, 2024
  • 3 replies
  • 3163 views

I am running the dispatcher using docker on my local Windows machine. Can anyone tell me where can I find the cache folder? I need to change some cache rules and check whether it is being applied successfully or not.

Also how to change this cache root in local ?

Best answer by Ankan_Ghosh

Finally, I have found the answer to this question.



I checked for the volume mappings for my running Docker container using this command

docker inspect <container_id>

In the output you should see a "Mounts" section which looks something like this :

"Mounts": [
{
"Type": "bind",
"Source": "C:\\Users\\myUser\\Files\\AEMMainInstance\\dispatcher\\bin\\..\\lib",
"Destination": "/usr/lib/dispatcher-sdk",
"Mode": "ro",
"RW": false,
"Propagation": "rprivate"
},{
"Type": "bind",
"Source": "C:\\Users\\myUser\\Files\\AEMMainInstance\\dispatcher\\src",
"Destination": "/mnt/dev/src",
"Mode": "ro",
"RW": false,
"Propagation": "rprivate"
},

]



There was no "mount" defined for the path "/mnt/var/www/html" which is the path to my docroot. So, I changed the docer_run.cmd script to add a new mount to specify the mapping for "/mnt/var/www/html".



Add this line in your docker_run.cmd and it will add the mount for you.

set volumes=-v C:\Users\yourUser\Files\AEMMainInstance\dispatcher\cache:/mnt/var/www/html:rw !volumes!

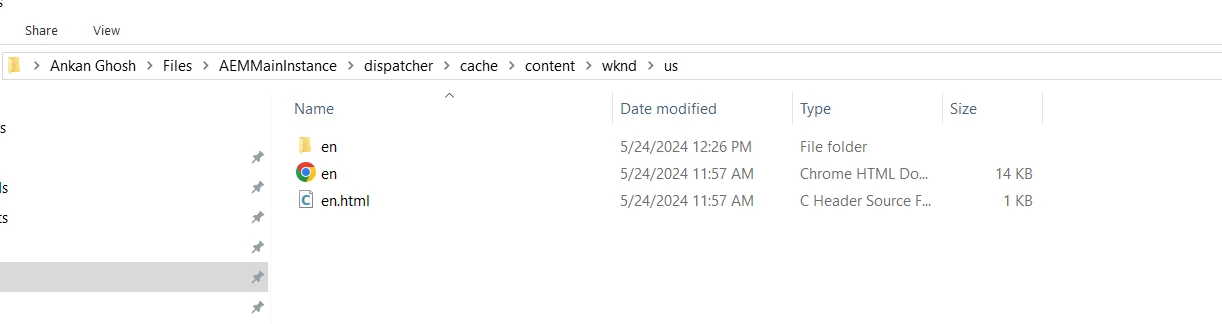

Restart your docker and try to hit a page from your dispatcher. And you check your local directory that you used for mapping to see how the caching is happening.






3 replies

Ankan_Ghosh
Ankan_GhoshAuthorAccepted solution
New Participant
May 24, 2024

Finally, I have found the answer to this question.



I checked for the volume mappings for my running Docker container using this command

docker inspect <container_id>

In the output you should see a "Mounts" section which looks something like this :

"Mounts": [
{
"Type": "bind",
"Source": "C:\\Users\\myUser\\Files\\AEMMainInstance\\dispatcher\\bin\\..\\lib",
"Destination": "/usr/lib/dispatcher-sdk",
"Mode": "ro",
"RW": false,
"Propagation": "rprivate"
},{
"Type": "bind",
"Source": "C:\\Users\\myUser\\Files\\AEMMainInstance\\dispatcher\\src",
"Destination": "/mnt/dev/src",
"Mode": "ro",
"RW": false,
"Propagation": "rprivate"
},

]



There was no "mount" defined for the path "/mnt/var/www/html" which is the path to my docroot. So, I changed the docer_run.cmd script to add a new mount to specify the mapping for "/mnt/var/www/html".



Add this line in your docker_run.cmd and it will add the mount for you.

set volumes=-v C:\Users\yourUser\Files\AEMMainInstance\dispatcher\cache:/mnt/var/www/html:rw !volumes!

Restart your docker and try to hit a page from your dispatcher. And you check your local directory that you used for mapping to see how the caching is happening.






Ankan_Ghosh
New Participant
May 24, 2024

 @aashishdimri2002  @urmila  You guys can try this and see if it helps.

arunpatidar
New Participant
March 28, 2024

Hi @ankan_ghosh

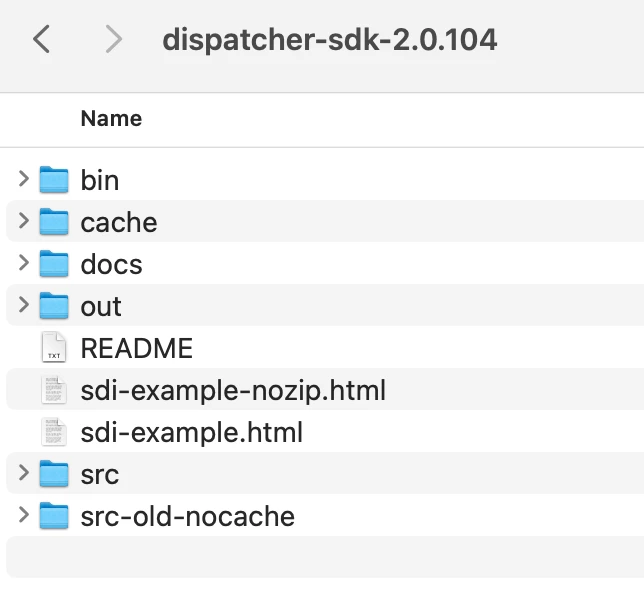

It will be inside the dispatcher sdk folder, if you are using AEM as a cloud SDK







Arun Patidar
Ankan_Ghosh
New Participant
March 28, 2024

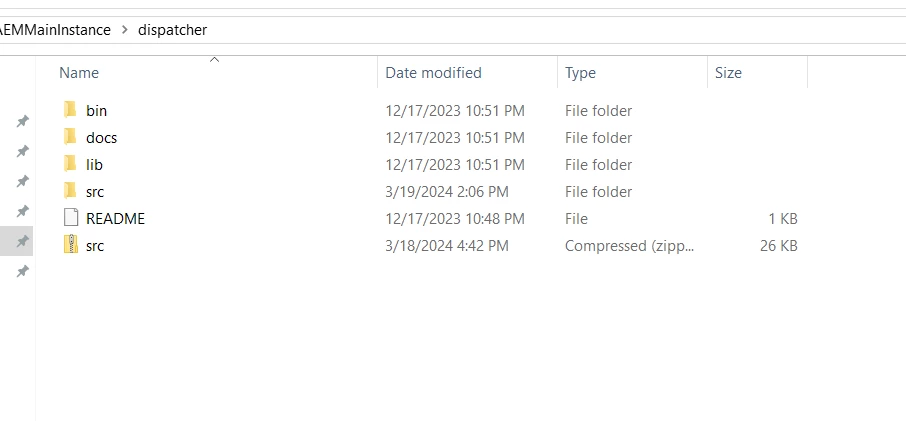

I am on a Windows Machine and the cache folder is not being generated inside the Dispatcher Folder. Content is being served but I am not able to see how things are being cached. My main motive is to understand how things are cached and in what order.



arunpatidar
New Participant
March 28, 2024

Hi @ankan_ghosh
Maybe the cache is not working as expected, please check your configurations.
As @aanchal-sikka  mentioned, you would be able to see the cache from terminal which opens within container.

Arun Patidar
aanchal-sikka
New Participant
March 28, 2024

@ankan_ghosh





  • Cache :
    • defined by: /docroot property in farm file
    • default location for AEMaaCS SDK’s docker image: /mnt/var/www/html



The following blog covers multiple important aspects around dispatcher set-up via docker

https://techrevel.blog/2023/08/28/navigating-aem-dispatcher-setup-farm-file-resolution-and-variable-utilization/

Aanchal Sikka
Ankan_Ghosh
New Participant
March 28, 2024

Thanks for the reply. But where is this mnt/var/www/html being created in the local directory?

How do I check the files that are cached?

aanchal-sikka
New Participant
March 28, 2024

@ankan_ghosh



Option-1:

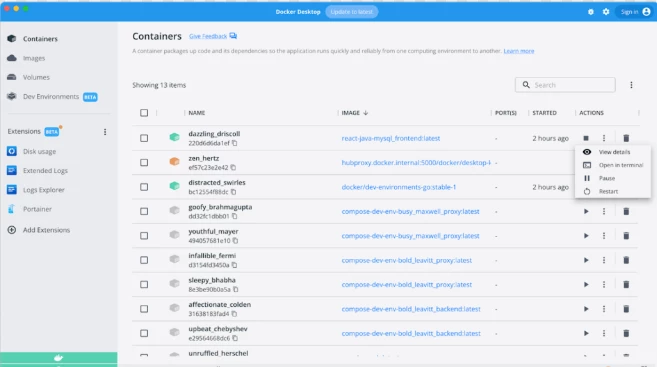

I don't have a docker locally, so sharing the screenshots from internet.

- Go to Images

- Click on the vertical ellipses corresponding to your image.

- Select "Open in terminal". You should be able to access logs at /mnt/var/www/html





Option-2: To access via power shell.

https://www.youtube.com/watch?v=o5ycGE2bGIg





Aanchal Sikka
