How to call workflow from Touch UI

4 replies
2484 views
Translate

Hi,

can anyone please help me on how to call workflow in Touch UI.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Hemant_aroraAccepted solution

Level 8

Make an jquery ajax call to a sling servlet which further call the workflow through API

Refer to example below.

Adobe Experience Manager Help | Invoking Adobe Experience Manager Workflows using the AEM Java API

You must also look into solution by smacdonald2008

There are only 2 methods (not counting the Deprecated one) exposed in the WorkFlowSession Class that starts a workflow:

`Workflow`	`startWorkflow(WorkflowModel model, WorkflowData data)` Start a new `Workflow` instance with the given `WorkflowModel` and `WorkflowData`.
`Workflow`	`startWorkflow(WorkflowModel model, WorkflowData data, Dictionary<String,String> metaData)` Deprecated. It's recommended to use `#startWorkflow(WorkflowModel, WorkflowData, Map instead.`
`Workflow`	`startWorkflow(WorkflowModel model, WorkflowData data, Map<String,Object> metaData)` Start a new `Workflow` instance with the given `WorkflowModel`, `WorkflowData` and `meta data`.

Therefore you need a WorkflowModel and data,

In your use case - you need these as input - else it will not work.

How to trigger a workflow process programmatically?

Level 10

Great answer!

Translate

Hemant_aroraAccepted solution

Level 8

Make an jquery ajax call to a sling servlet which further call the workflow through API

Refer to example below.

Adobe Experience Manager Help | Invoking Adobe Experience Manager Workflows using the AEM Java API

You must also look into solution by smacdonald2008

There are only 2 methods (not counting the Deprecated one) exposed in the WorkFlowSession Class that starts a workflow:

`Workflow`	`startWorkflow(WorkflowModel model, WorkflowData data)` Start a new `Workflow` instance with the given `WorkflowModel` and `WorkflowData`.
`Workflow`	`startWorkflow(WorkflowModel model, WorkflowData data, Dictionary<String,String> metaData)` Deprecated. It's recommended to use `#startWorkflow(WorkflowModel, WorkflowData, Map instead.`
`Workflow`	`startWorkflow(WorkflowModel model, WorkflowData data, Map<String,Object> metaData)` Start a new `Workflow` instance with the given `WorkflowModel`, `WorkflowData` and `meta data`.

Therefore you need a WorkflowModel and data,

In your use case - you need these as input - else it will not work.

How to trigger a workflow process programmatically?

Translate

niveshchandrajAuthor

New Participant

Thank you for the suggestion but am trying to access it by using jQuery

Translate

Level 8

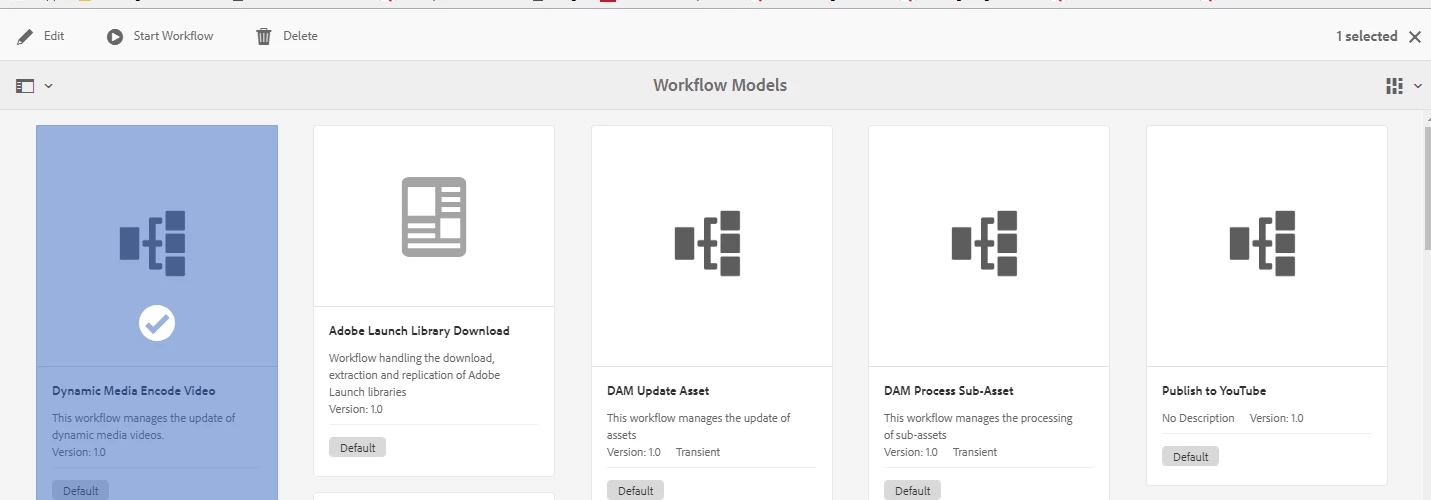

Go to http://localhost:4505/libs/cq/workflow/admin/console/content/models.html

select the model and start workflow.

Translate
