Multifield issue in Touch UI

  • October 16, 2015
  • 4 replies
  • 3069 views

Hi,

I created one multifield to store value as child nodes, I can enter values in dialog and it's storing in crx.

When i tried to edit component, nothing is there in dialog.

It's showing empty in Touch UI.

Please suggestion some solution for this.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by Lokesh_Shivalingaiah

check your retrieve logic in your custom field. Basically its not persisting your value while fetching it

Share your multifield script to check

4 replies

radhikak8817019
radhikak8817019
New Participant
February 2, 2016

Hi Lokesh,

We moved our multifield.js at the same location but still its not working. I have attached the js file we are using in our component by saving it as .txt.

It seems that the current js file which we are using handles the Classic UI only but not the touch dialog.

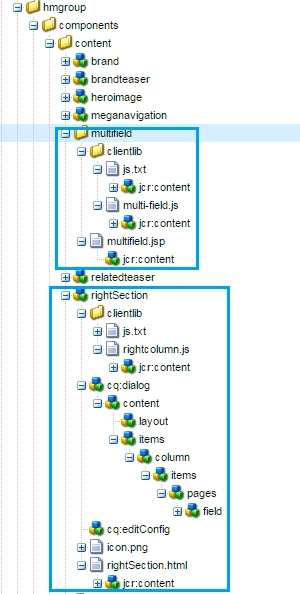

Please find the js file we are using and the snapshot for apps and content structure.

apps component :

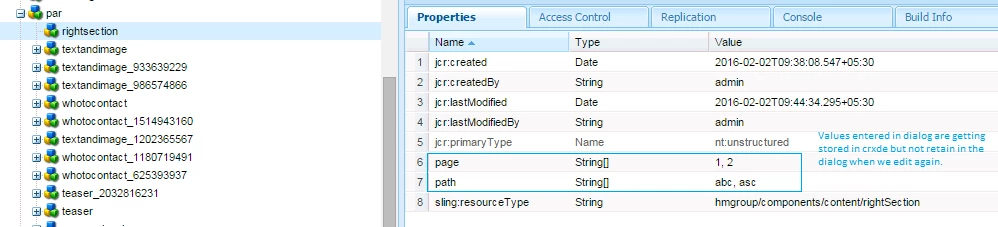

Content node :

Please suggest if any changes are required.

Thanks for your much appreciated help :)

Radhika

Lokesh_Shivalingaiah
Lokesh_Shivalingaiah
New Participant
January 28, 2016

Persisting the values with the field would be in your multifield JS file, please post your JS under /apps/hmi/components/content/multifield

radhikak8817019
radhikak8817019
New Participant
January 27, 2016

Hi Lokesh,

I am facing the same issue as mentioned above. The values are not retained in multifield touch ui dialog.

I have implemented multifield in touch ui with 2 fields "textfield" & "pathbrowse". I am able to provide values on dialog and click save but when I reopen the dialog, values are not shown on dialog. however values are getting stored under /content path.

Below is the dialog.xml for touch ui dialog

<?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" jcr:title="Right Section" sling:resourceType="cq/gui/components/authoring/dialog" helpPath="en/cq/current/wcm/default_components.html#Text"> <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns" type="nav"/> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <items jcr:primaryType="nt:unstructured"> <pages jcr:primaryType="nt:unstructured" sling:resourceType="/apps/hmi/components/content/multifield" class="full-width" fieldDescription="Click '+' or 'Add Field' to add a new Links" fieldLabel="Add Links"> <field jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/fieldset" name="./items"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns" method="absolute"/> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <items jcr:primaryType="nt:unstructured"> <page jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/textfield" fieldDescription="Enter link text" fieldLabel="Link Text" name="./page"/> <path jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/pathbrowser" fieldDescription="Enter Path" fieldLabel="Link &#xa;Path" name="./path" rootPath="/content"/> </items> </column> </items> </field> </pages> </items> </column> </items> </content> </jcr:root>





Please suggest if we are missing something here. Let me know if further information is required.

Thanks in advance,

Radhika

Lokesh_Shivalingaiah
Lokesh_ShivalingaiahAccepted solution
New Participant
October 16, 2015

check your retrieve logic in your custom field. Basically its not persisting your value while fetching it

Share your multifield script to check
