OOTB Experience Fragment Component not showing values

7 replies
1655 views
Translate

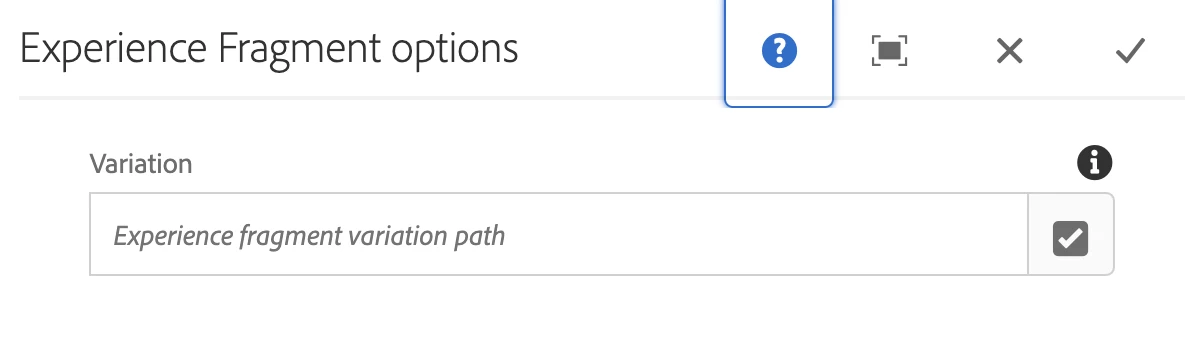

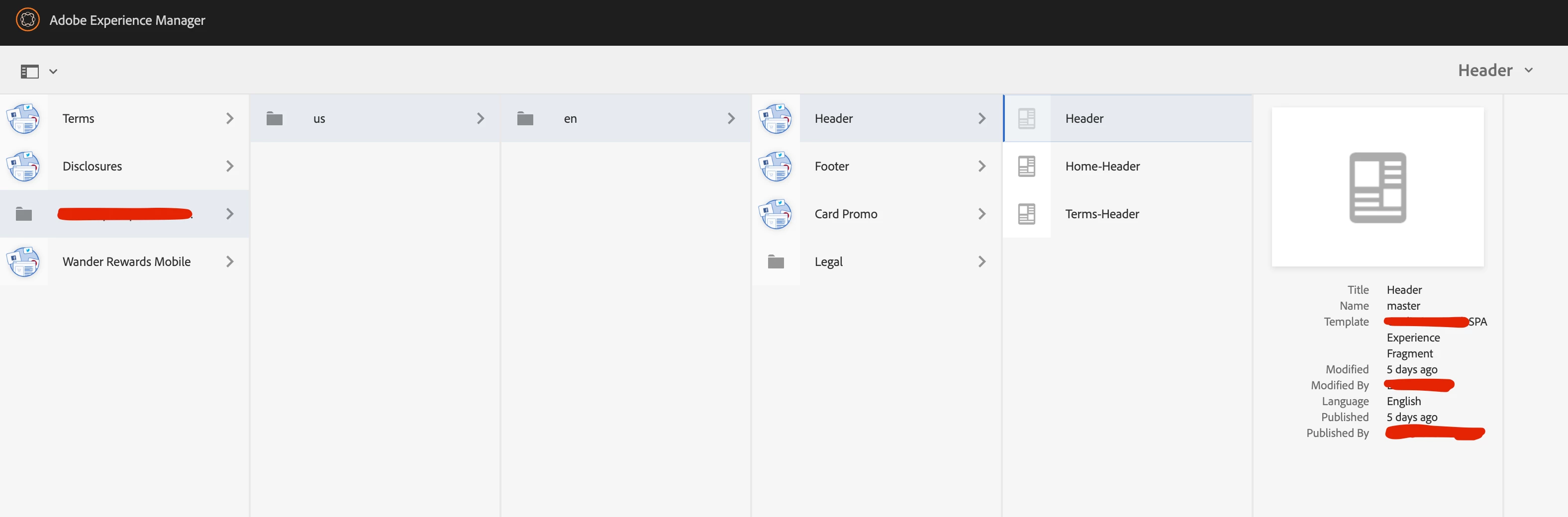

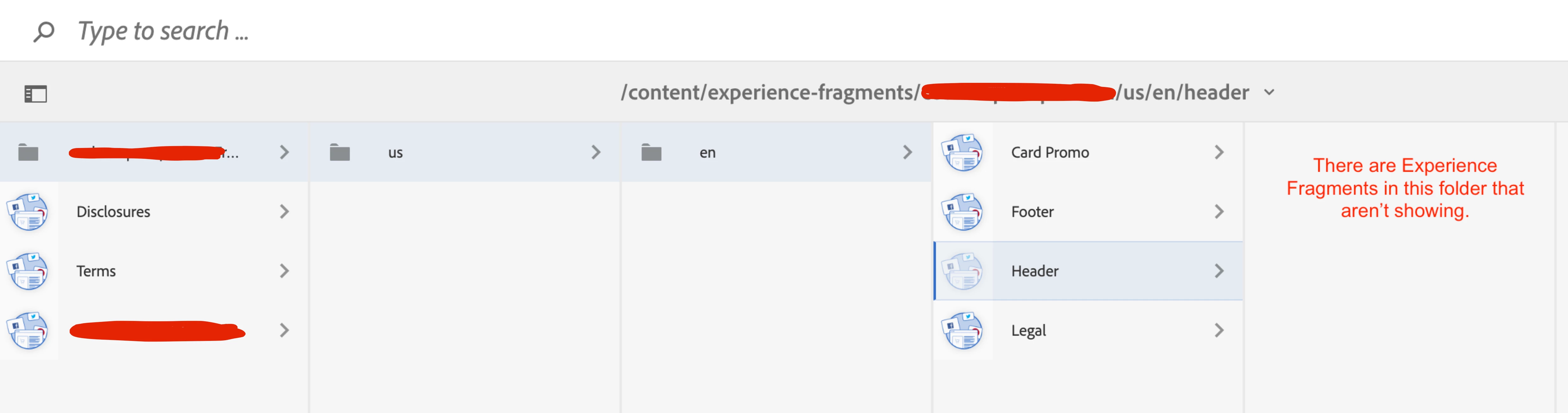

When setting an Experience Fragment from within the Experience Fragment component, the browse file popup for the Validation field doesn’t display the actual Experience Fragments….only the folders

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

arunpatidarAccepted solution

New Participant

Hi,

I tired with core XF, I can't see this error, can you try in vanilla instance

Arun Patidar

arunpatidar

New Participant

Can you try with core component

https://www.aemcomponents.dev/content/core-components-examples/library/core-content/experience-fragment.html

https://github.com/adobe/aem-core-wcm-components/tree/main/content/src/content/jcr_root/apps/core/wcm/components/experiencefragment/v2/experiencefragment

Translate

Arun Patidar

J

JuanEc2Author

Level 3

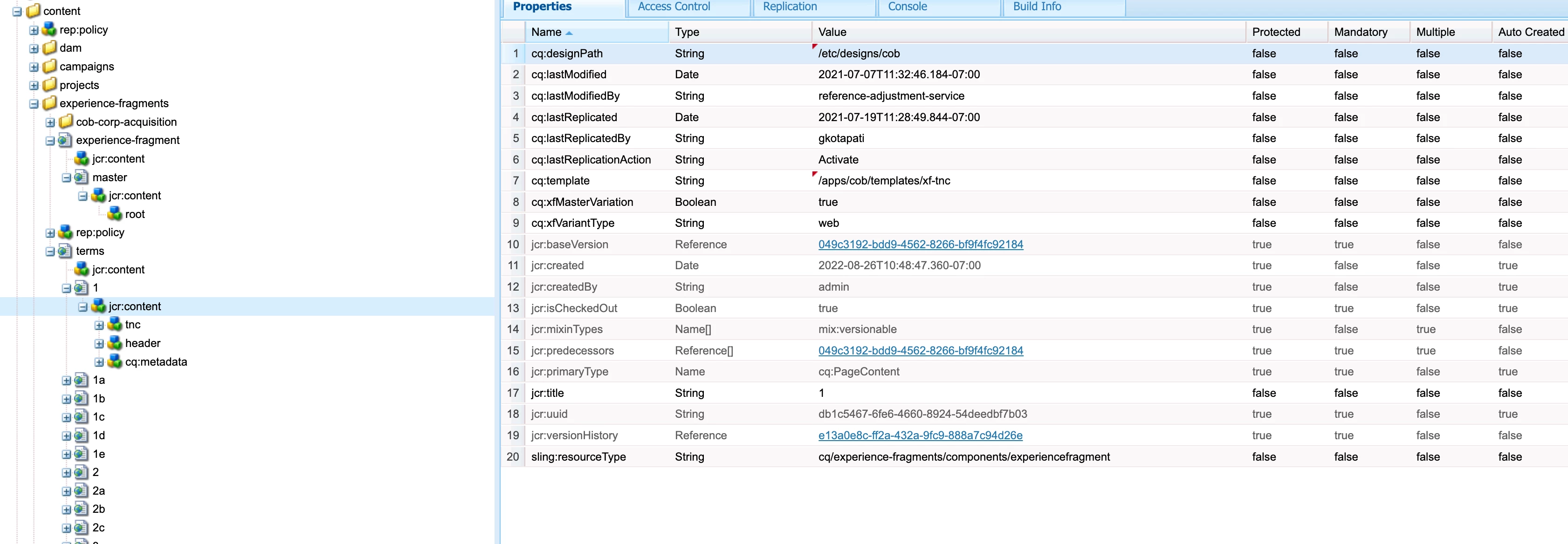

Hi thank you for replying, I have attempted using the core components, they now appear within the variation browser but am getting an error. Could it be an issue with the one of the following:

cq:template
cq:xfMasterVariation
cq:xfVariantType
sling:resourceType

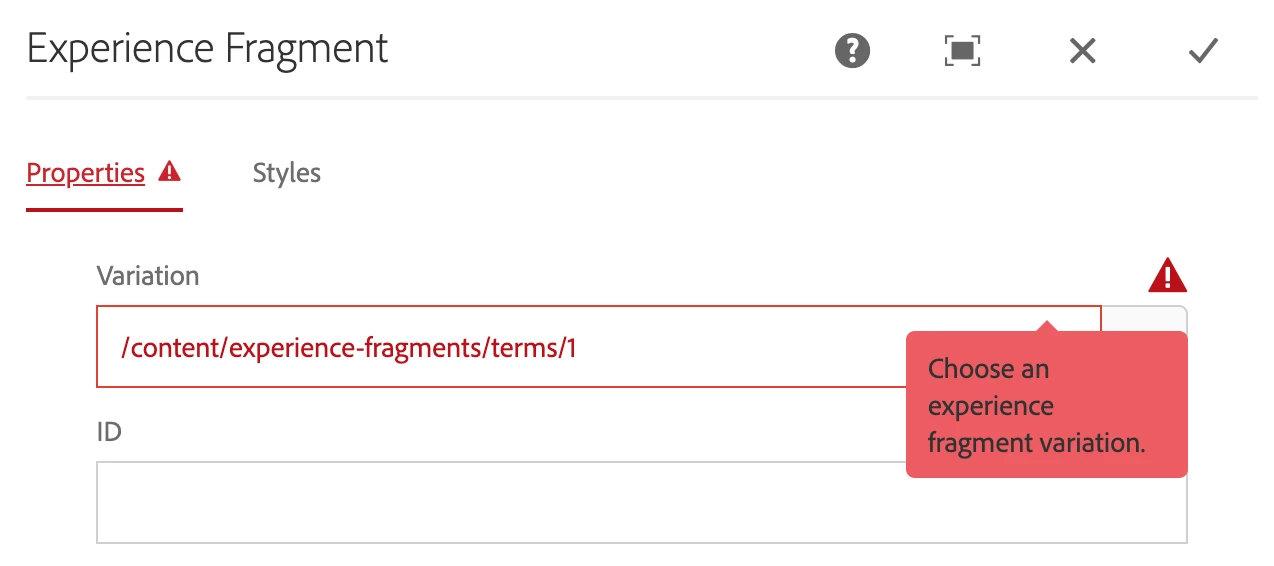

error

Translate

arunpatidarAccepted solution

New Participant

Hi,

I tired with core XF, I can't see this error, can you try in vanilla instance

Translate

Arun Patidar

ManviSharma

Employee

Hi,

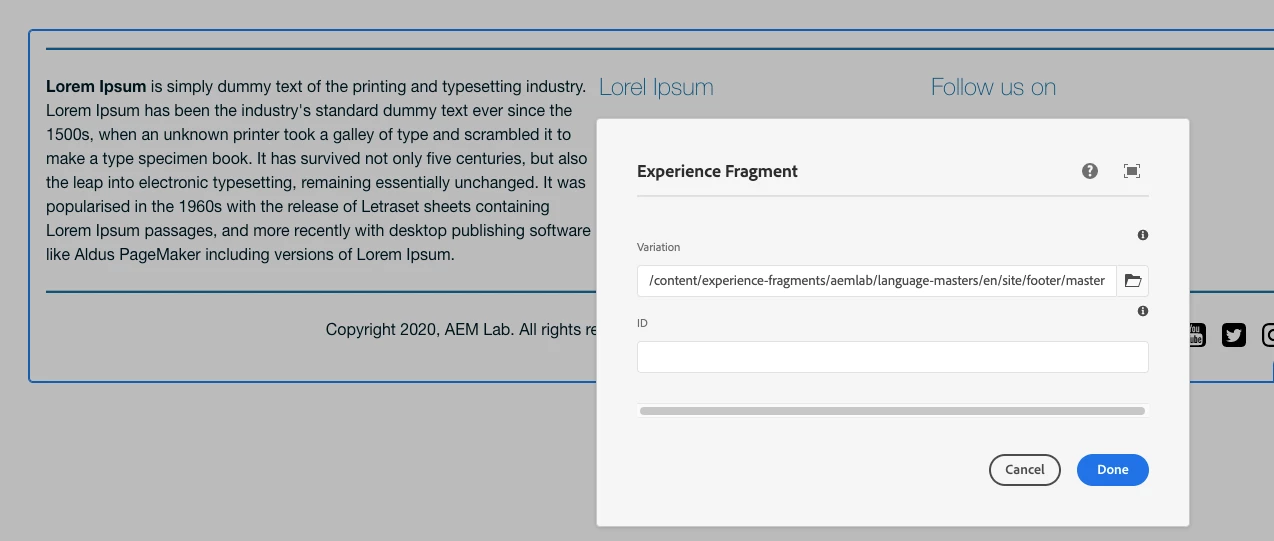

It works perfectly fine.

Did you check the resource resolution and if all the XF configurations are in place?

Ensure cq:template and sling:resourceType are pointing to appropriate paths and the path exists.

Navigate to the template and check if the page component sling:resourceType is pointing to correct path.

Also please check if the XF is editable, If yes, then it will be an issue with the components that are authored on the XFs. Please check the components as well.

At last, try installing the latest core components, this might resolves the issue.

Translate

J

JuanEc2Author

Level 3

Thank you for the reply, can you explain how to do the following:

check the resource resolution and if all the XF configurations are in place
check if the XF is editable

Translate

Sachin_Arora_

New Participant

In experience fragment component, when you search for fragment, it allows to add the variation of the experience fragment. I can see in above images, Fragments are available to be selected. Where exactly you are not able to select them?

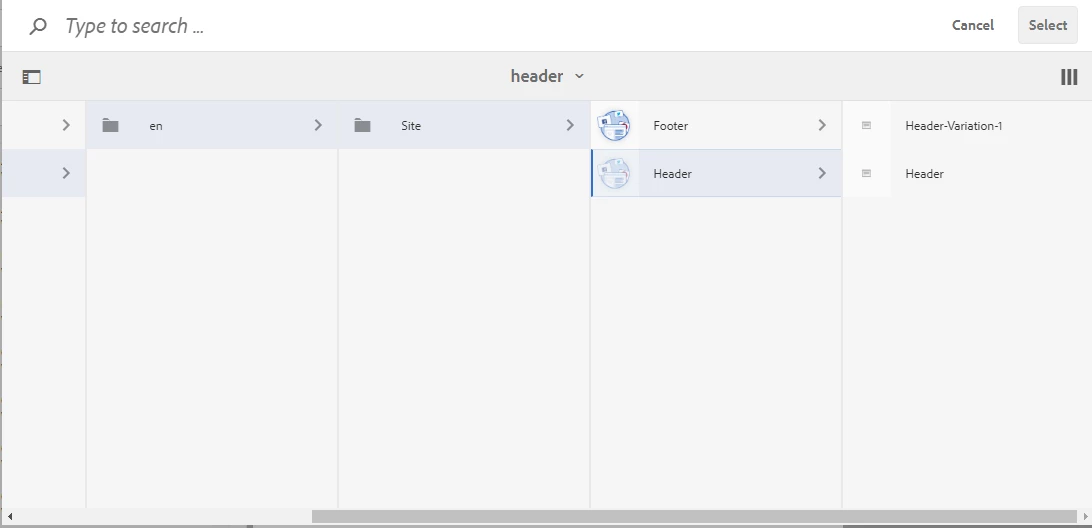

You can refer below screenshot. Right most are the variation of Header Experience Fragment.
