Out of Box Column control is not working in AEM 6.4

  • December 14, 2018
  • 8 replies
  • 5512 views

Dear All,

I am trying to use the OUT of Box Column Control in AEM 6.4 in the WKND sites , by following the below steps.

But it is not coming fine means , in the drop down it is not coming anything . I am following the below steps.

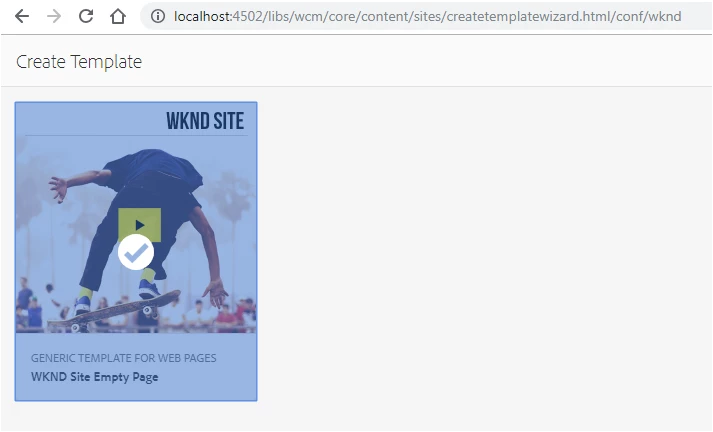

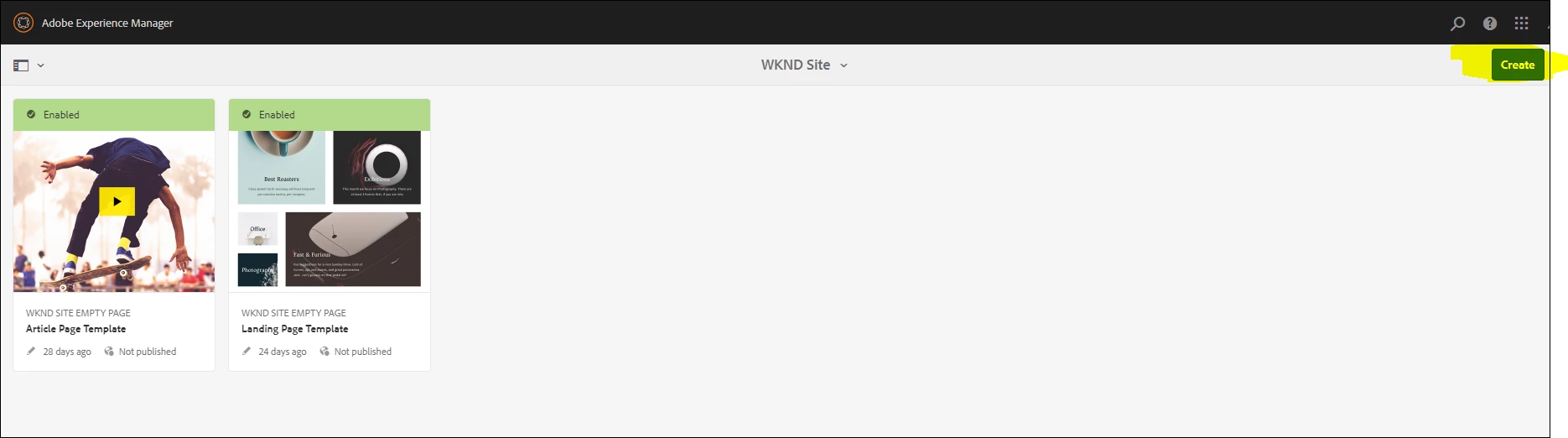

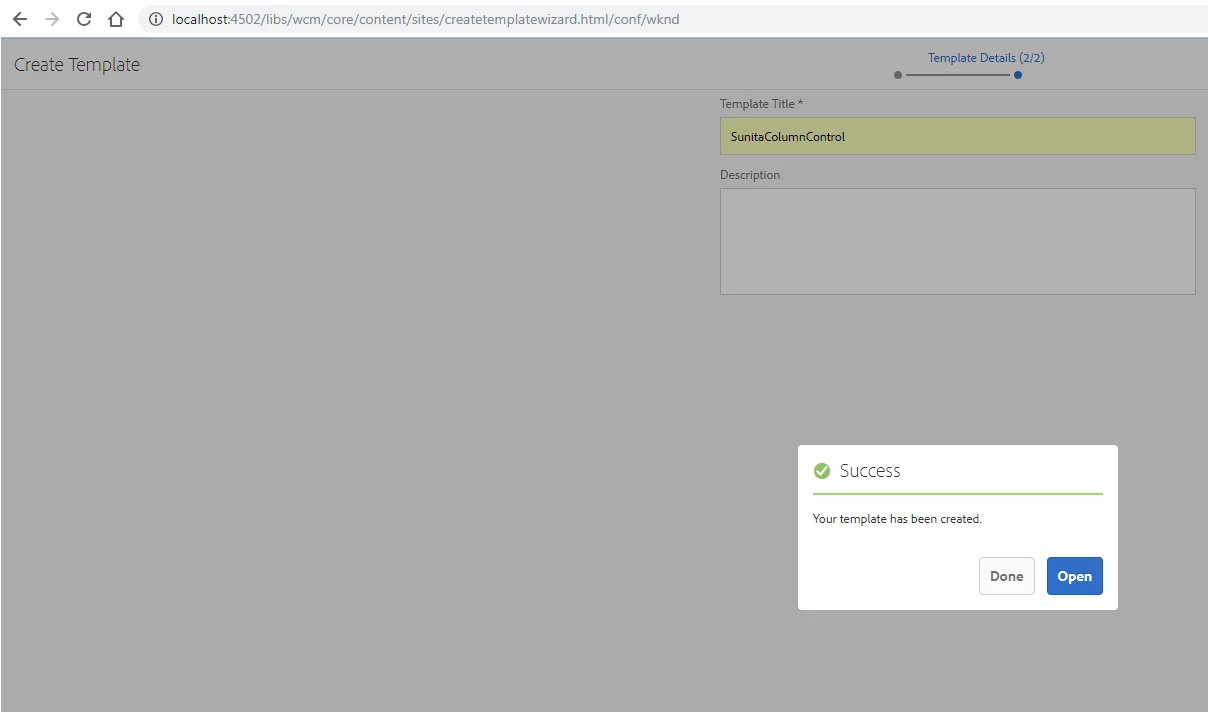

1) I go the WKND editable template (http://localhost:4502/libs/wcm/core/content/sites/templates.html/conf/wknd ) , as shown below and created the sunitacolumncontrol , as shwon below.

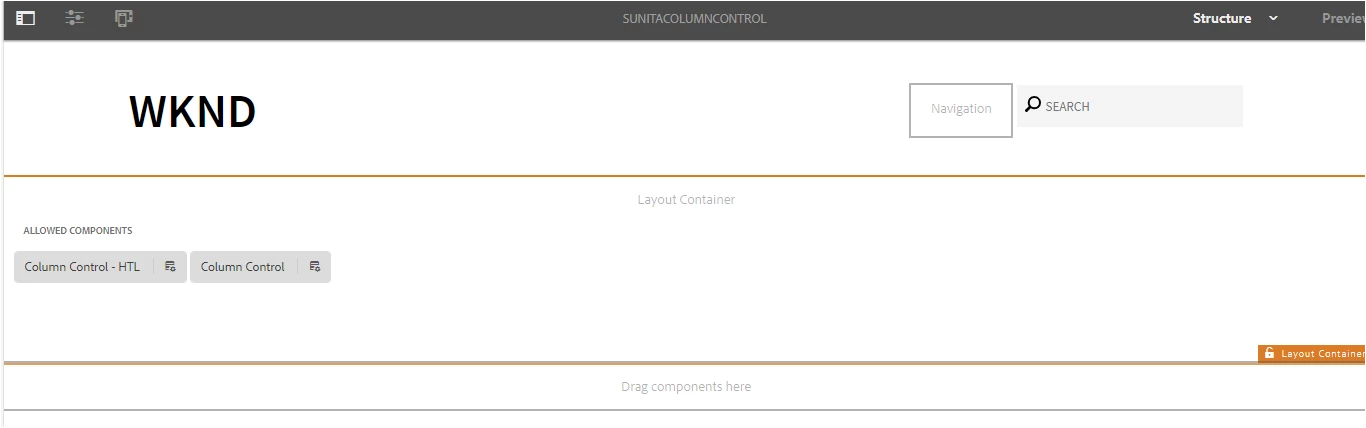

2) Then I have opened the sunitaColumnControl template (http://localhost:4502/editor.html/conf/wknd/settings/wcm/templates/sunitacolumncontrol/structure.html  ) and added the column control in Layout container and enable it , as shown below.

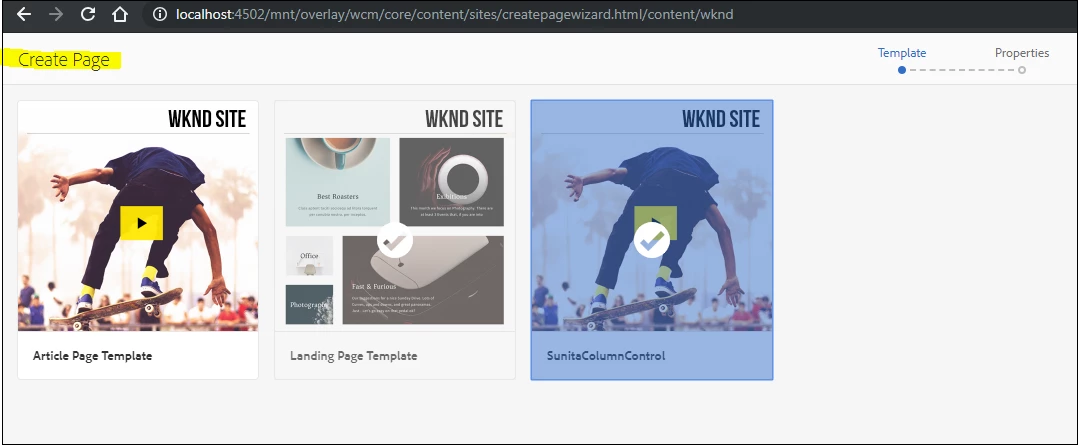

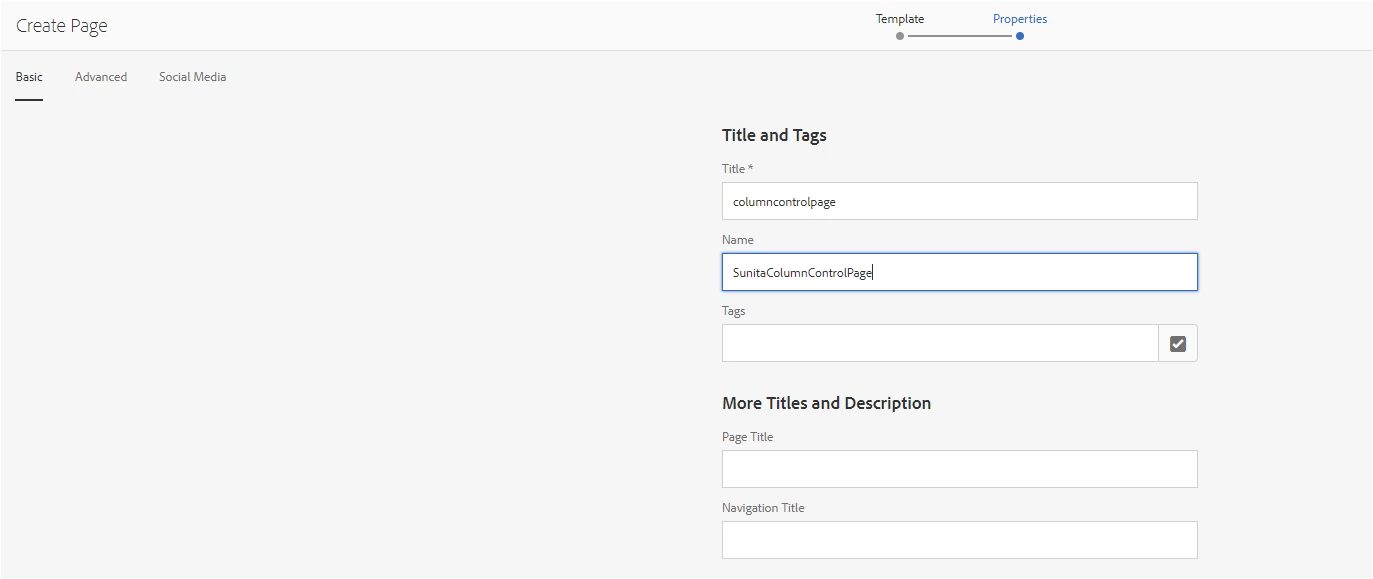

3) Then I have created the page in sites by using the sunitacolumncontrol template (http://localhost:4502/libs/wcm/core/content/sites/templates.html/conf/wknd ) , as shown in below steps.

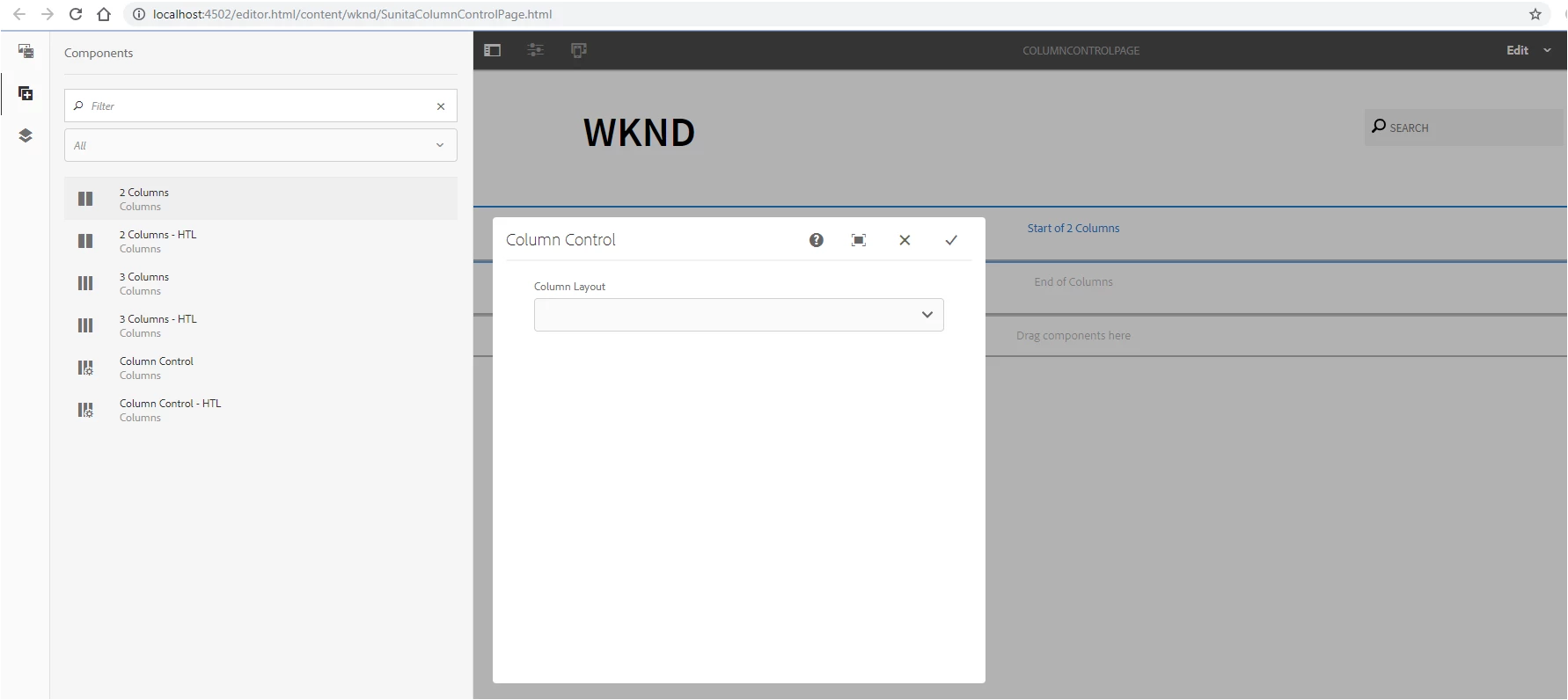

4) Now I am trying to edit the page , as shown below and it is not coming fine.

Can you please let me know , If I have missed anything ?

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by smacdonald2008

    I Strongly recommend to install the package for this part of the tutorial. You will see it working. Then compare that solution with what you have done.

    8 replies

    C
    charityh8448708
    New Participant
    June 12, 2019

    Several Core Components come with client libraries that need to be included on the page in order for the component to function properly.

    S
    sunitac70336244Author
    New Participant
    December 17, 2018

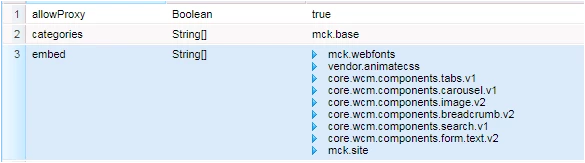

    Thanks Scott. After I copied the files from the WKND exercise , it is working fine. I observed the below difference. 1) I include embed and it is working fine. But still now I did not get fully understand the use of embed. Can you please let me know why we use embed.

    smacdonald2008
    smacdonald2008
    New Participant
    December 17, 2018

    Another thing - Danial said this has been updated to 6.4.2.  You need to have that Service pack. (I will test this too)

    Another way is to build a custom grid component that uses bootstrap. This lets you place components in columns too. See this.

    Scott's Digital Community: Creating a custom Touch UI Grid Component for Adobe Experience Manager

    S
    sunitac70336244Author
    New Participant
    December 17, 2018

    Thanks. Let me try this one.

    smacdonald2008
    smacdonald2008Accepted solution
    New Participant
    December 17, 2018

    I Strongly recommend to install the package for this part of the tutorial. You will see it working. Then compare that solution with what you have done.

    S
    sunitac70336244Author
    New Participant
    December 17, 2018

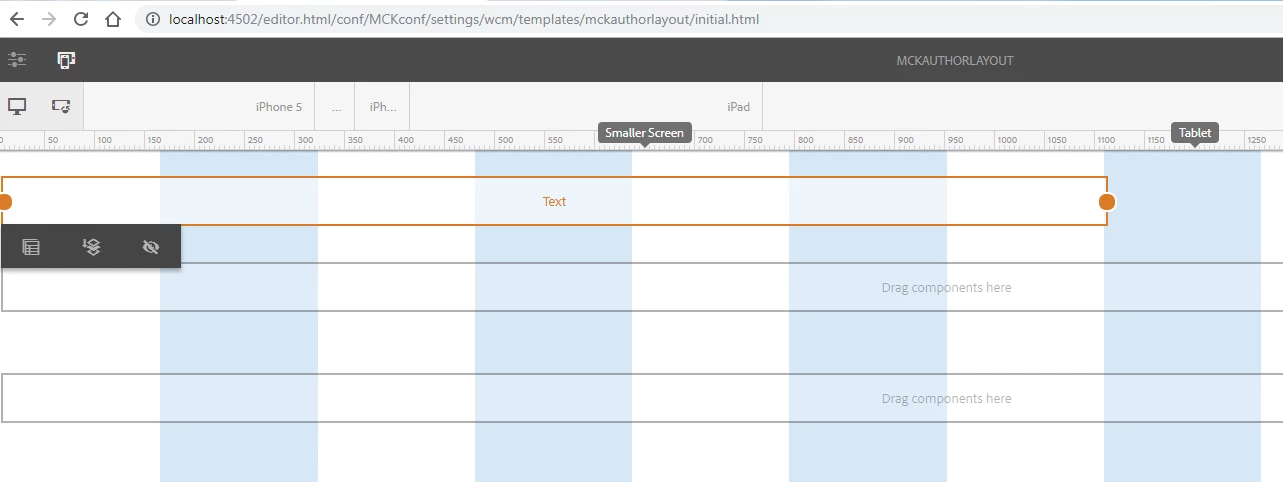

    Dear All, I have followed the below steps mentioned in the below document Configuring Layout Container and Layout Mode But still I am not able to resize the Text in layout , as shown below.

    I have put my files in my git hub repository in below.

    GitHub - sunita197881/sunitatest1 at MCK-AEM-6.4

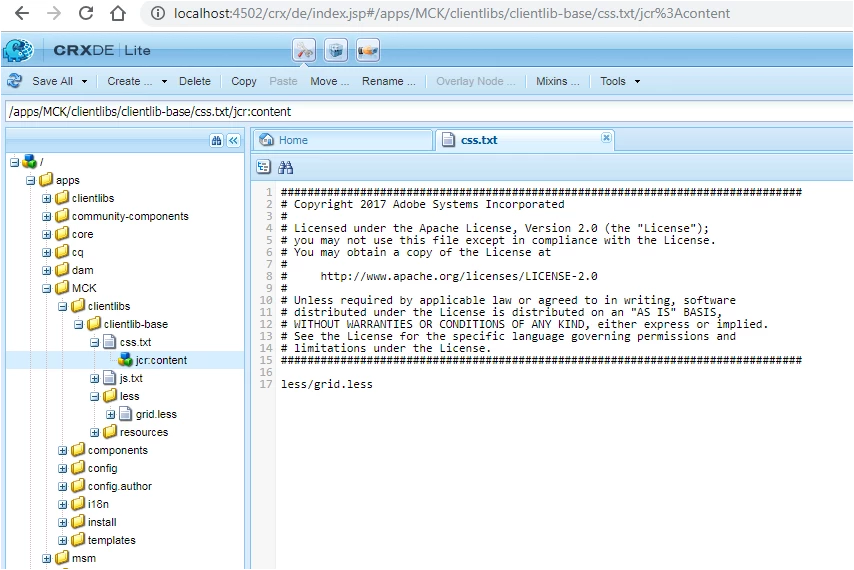

    My grid.less file is under below .

    Lokesh_Shivalingaiah
    Lokesh_Shivalingaiah
    New Participant
    December 17, 2018

    Please refer this documentation as mentioned by Anshuman

    Configuring Layout Container and Layout Mode

    A
    anshumank367659
    New Participant
    December 17, 2018

    Please add the grid.less file to your client library to make it happen.

    @import (once) "/etc/clientlibs/wcm/foundation/grid/grid_base.less";

    /* maximum amount of grid cells to be provided */

    @max_col: 12;

    /* default breakpoint */

    .aem-Grid {

      .generate-grid(default, @max_col);

    }

    /* phone breakpoint */

    @media (max-width: 768px) {

      .aem-Grid {

        .generate-grid(phone, @max_col);

      }

    }

    /* tablet breakpoint */

    @media (min-width: 769px) and (max-width: 1200px) {

      .aem-Grid {

        .generate-grid(tablet, @max_col);

      }

    }

    Reference :: Configuring Layout Container and Layout Mode
