Unable to get Request custom Client headers on dispatcher

  • June 20, 2023
  • 5 replies
  • 2277 views

Getting response as expected when hitting 'GET' request on Publisher with request custom headers "securitykey" and "assettype"

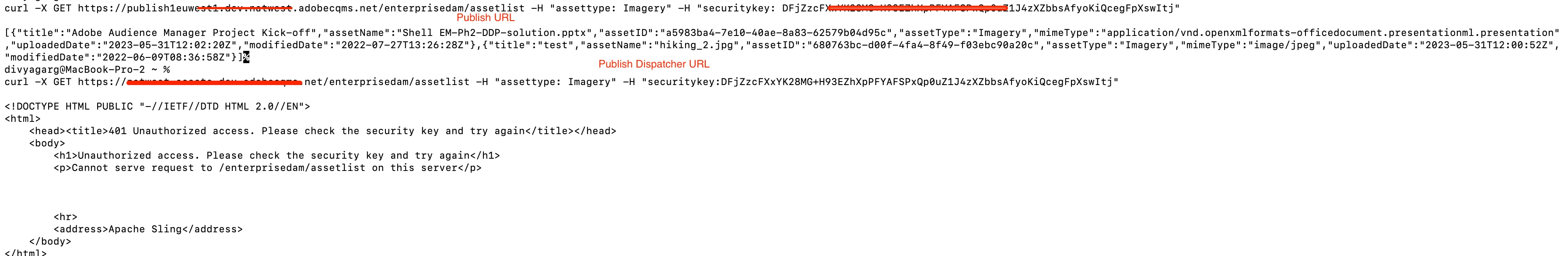

Getting 401 when hitting same GET request with same request headers on Dispatcher.

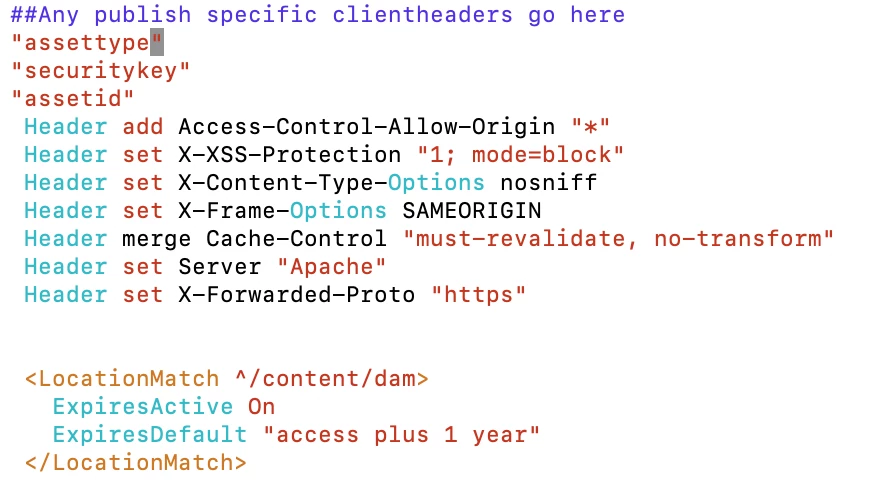

Client headers have been added in dispatcher clientheaders.



Client headers added

Tried :

Also tried :-

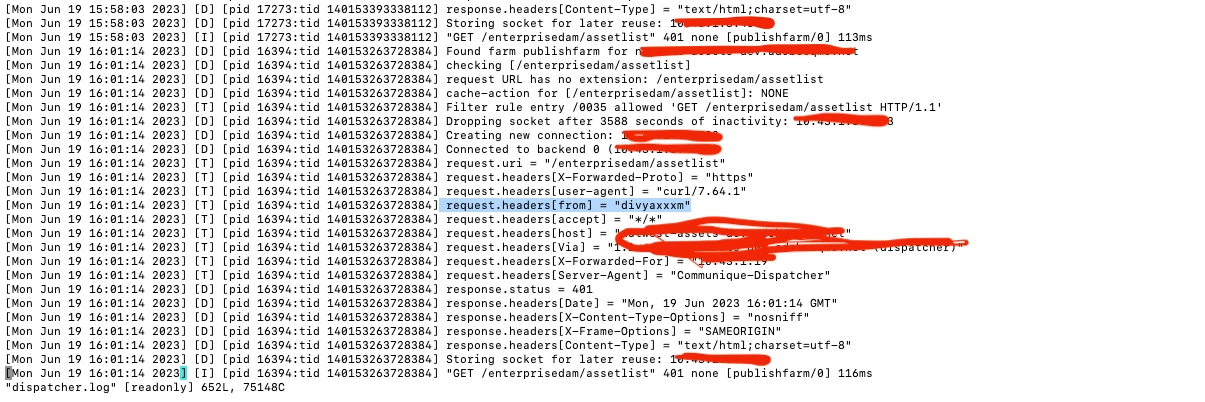

Dispatcher logs - don't see custom request headers in logs like securitykey or assettype although I am sure right farm file and client header file is getting picked . Log is already set to trace.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by AlbinIs1

I want to ensure you are directly hitting the Dispatcher URL, not through CDN; in case you are hitting through CDN, the header may need to be whitelisted on CDN, also.

Also, ensure the correct dispatcher farm is resolved - the farm is enabled with the required client headers.

Regards

Albin

https://www.albinsblog.com

Albin Issac – Medium



5 replies

A
AlbinIs1Accepted solution
New Participant
June 22, 2023

I want to ensure you are directly hitting the Dispatcher URL, not through CDN; in case you are hitting through CDN, the header may need to be whitelisted on CDN, also.

Also, ensure the correct dispatcher farm is resolved - the farm is enabled with the required client headers.

Regards

Albin

https://www.albinsblog.com

Albin Issac – Medium



    aanchal-sikka
    aanchal-sikka
    New Participant
    June 21, 2023

    Hello @digarg17



    If instead of Curl, you use postman, is it the same behaviour?

    Aanchal Sikka
      EstebanBustamante
      EstebanBustamante
      New Participant
      June 20, 2023

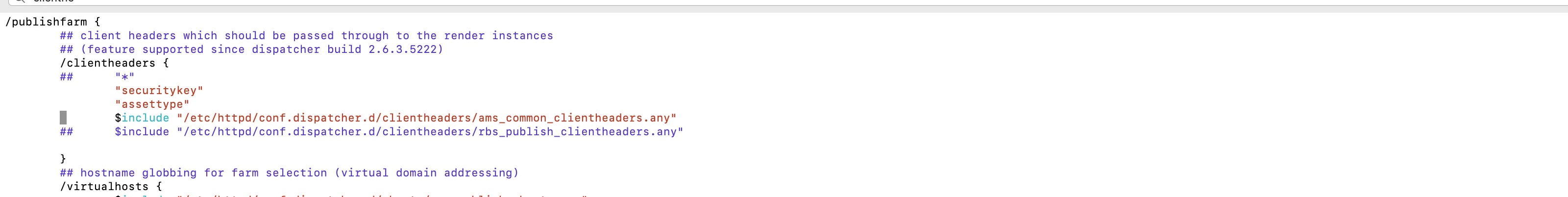

      The first screenshot is the way to go, you should add the headers below the "/clientheaders" section. Did you bounce your dispatcher ? Can you try to hit a different resource (i.e. a page) with those headers?

      Esteban Bustamante
        krishna_sai
        krishna_sai
        New Participant
        June 20, 2023

        Hi @digarg17 ,
        Can you check if you have a filter rule enabled to allow "/enterprisedam/assetlist"?

          D
          digarg17Author
          Employee
          June 20, 2023

          Yes its enabled

          /0035 { /type "allow" /url  "/enterprisedam/*" }



          Found farm publishfarm for xxx.net

          [Tue Jun 20 16:35:06 2023] [D] [pid 27037:tid 140507288164096] checking [/enterprisedam/assetlist]

          [Tue Jun 20 16:35:06 2023] [D] [pid 27037:tid 140507288164096] request URL has no extension: /enterprisedam/assetlist

          [Tue Jun 20 16:35:06 2023] [D] [pid 27037:tid 140507288164096] cache-action for [/enterprisedam/assetlist]: NONE

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] Filter rule entry /0035 allowed 'GET /enterprisedam/assetlist HTTP/1.1'

          [Tue Jun 20 16:35:06 2023] [D] [pid 27037:tid 140507288164096] Creating new connection: 10.43.1.8:4503

          [Tue Jun 20 16:35:06 2023] [D] [pid 27037:tid 140507288164096] Connected to backend 0 (10.43.1.8:4503)

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.uri = "/enterprisedam/assetlist"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[X-Forwarded-Proto] = "https"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[user-agent] = "curl/7.64.1"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[from] = "kkmmm"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[accept] = "*/*"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[host] = "xxx"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[Via] = "1.1 xxx (dispatcher)"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[X-Forwarded-For] = "xx.xx.1.19"

          [Tue Jun 20 16:35:06 2023] [T] [pid 27037:tid 140507288164096] request.headers[Server-Agent] = "Communique-Dispatcher"

          [Tue Jun 20 16:35:06 2023] [D] [pid 27037:tid 140507288164096] response.status = 401

            Tanika02
            Tanika02
            New Participant
            June 20, 2023

            Hello @digarg17  -



            Could you please double-check the Dispatcher configuration file (dispatcher.any) should include a section for clientheaders where you can specify which headers are allowed to pass through to the backend server ?

              D
              digarg17Author
              Employee
              June 20, 2023

              @tanika02  Checked already , its there . snapshots attached. tried passing "*" an specific headers too
