Unable to insert new components in Touch UI

I am using AEM 6.2.

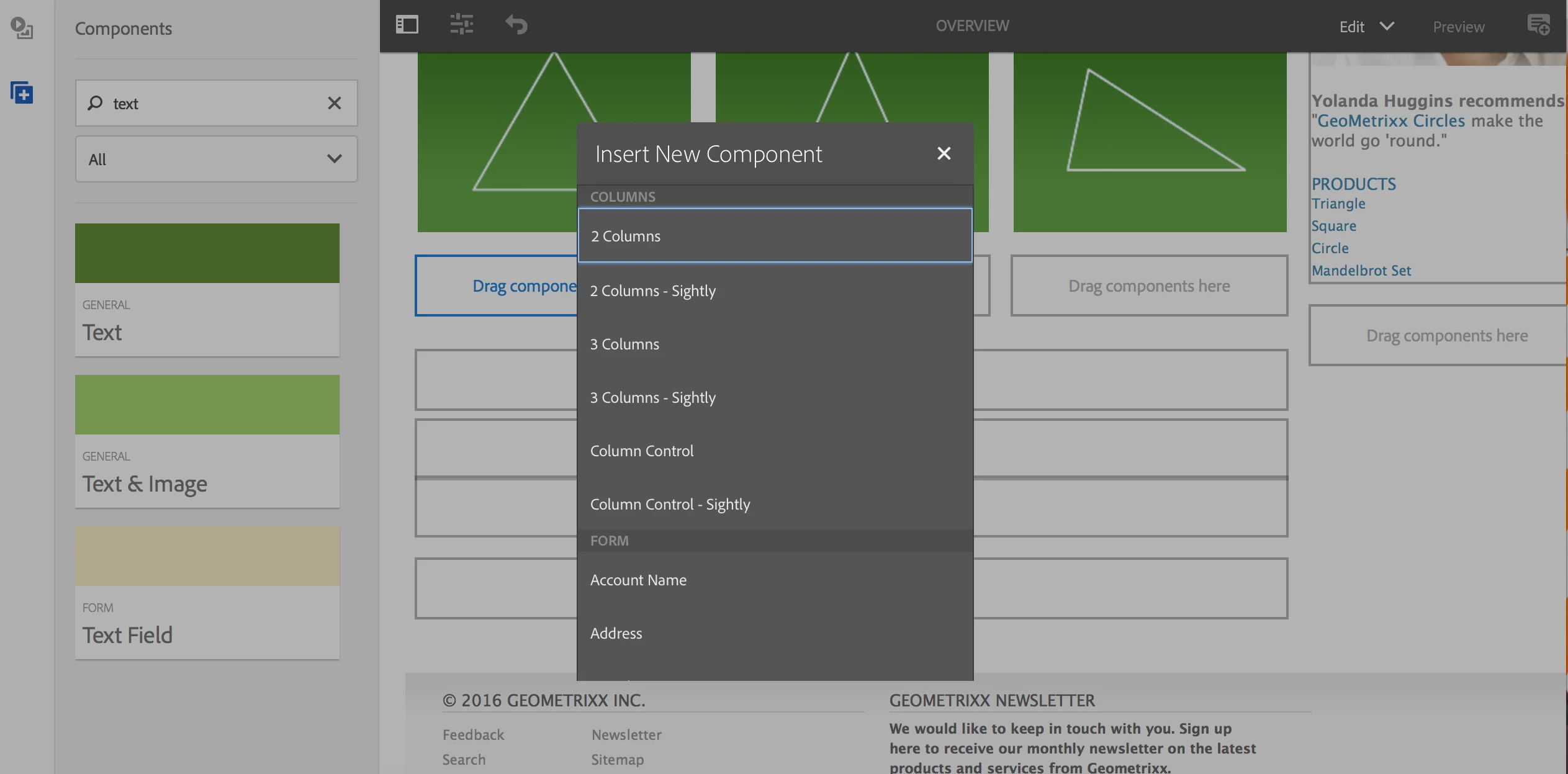

I am unable to insert new component in Touch UI view. When i click "Drag components here" it only show dialog like . but in classic UI I can easily drag and drop the components

I have already added the components in parsys.

error.log

28.11.2016 16:59:41.905 *INFO* [0:0:0:0:0:0:0:1 [1480332581900] GET /favicon.ico HTTP/1.1] apps.sling.servlet.errorhandler.404$jsp RequestUri : /favicon.ico 28.11.2016 16:59:41.905 *INFO* [0:0:0:0:0:0:0:1 [1480332581900] GET /favicon.ico HTTP/1.1] apps.sling.servlet.errorhandler.404$jsp Page Path Length: 2 28.11.2016 16:59:42.240 *ERROR* [0:0:0:0:0:0:0:1 [1480332581883] GET /libs/wcm/core/content/components.1480332512950.html HTTP/1.1] org.apache.sling.engine.impl.SlingRequestProcessorImpl service: Uncaught SlingException org.apache.sling.api.request.TooManyCallsException: /libs/cq/gui/components/authoring/componentbrowser/component/component.jsp at org.apache.sling.engine.impl.request.RequestData.service(RequestData.java:530) at org.apache.sling.engine.impl.filter.SlingComponentFilterChain.render(SlingComponentFilterChain.java:44) at org.apache.sling.engine.impl.filter.AbstractSlingFilterChain.doFilter(AbstractSlingFilterChain.java:77) at com.day.cq.personalization.impl.TargetComponentFilter.doFilter(TargetComponentFilter.java:96) at org.apache.sling.engine.impl.filter.AbstractSlingFilterChain.doFilter(AbstractSlingFilterChain.java:68) at com.day.cq.wcm.core.impl.WCMDebugFilter.doFilter(WCMDebugFilter.java:151) at org.apache.sling.engine.impl.filter.AbstractSlingFilterChain.doFilter(AbstractSlingFilterChain.java:68) at com.day.cq.wcm.core.impl.WCMComponentFilter.filterRootInclude(WCMComponentFilter.java:362) at com.day.cq.wcm.core.impl.WCMComponentFilter.doFilter(WCMComponentFilter.java:177) at org.apache.sling.engine.impl.filter.AbstractSlingFilterChain.doFilter(AbstractSlingFilterChain.java:68) at com.cognifide.cq.includefilter.IncludeTagWritingFilter.doFilter(IncludeTagWritingFilter.java:53) at org.apache.sling.engine.impl.filter.AbstractSlingFilterChain.doFilter(AbstractSlingFilterChain.java:68) at com.day.cq.wcm.core.impl.WCMDeveloperModeFilter.doFilter(WCMDeveloperModeFilter.java:114) at org.apache.sling.engine.impl.filter.AbstractSlingFilterChain.doFilter(AbstractSlingFilterChain.java:68) at org.apache.sling.engine.impl.SlingRequestProcessorImpl.processComponent(SlingRequestProcessorImpl.java:282)
This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

6 replies

hitpatel
New Participant
Mar 13, 2020 9:17 AM UTC

@codingstar Search for Apache Sling Main Servlet in /system/console/configMgr and increase the value of Number of Calls per Request to approx. 3000 (1000 default) and try inserting components again.



See if this helps.

-Hit

Translate
kautuk_sahni
kautuk_sahni
Employee
Nov 29, 2016 8:18 AM UTC

Hi

I also faced this problem some time back.

When i use to double click on "Drag Component Here" same empty Insert New Component message use to come up.

I would request you to please create a daycare ticket for this.

Reference post:- http://help-forums.adobe.com/content/adobeforums/en/experience-manager-forum/adobe-experience-manager.topic.html/forum__v6oy-hi_all_we_arefa.html

//This is for all components and these are developed in Classic UI and when we open the same in Touch UI this problem arised.

~kautuk

Translate
Kautuk Sahni
smacdonald2008
smacdonald2008
Level 10
Nov 28, 2016 3:20 PM UTC

Are you seeing components in the Touch UI Side Rail?

Translate
codingStar
codingStarAuthor
Level 3
Nov 28, 2016 4:23 PM UTC

@smacdonald2008   No,  but components are visible in classic UI Sidekick

Translate
diptinarang
diptinarang
Level 3
Nov 28, 2016 11:30 AM UTC

Are you able to insert components in AEM’s OOTB provided Geometrixx site? Also can you check using any debugging Tool like Firebug, if any exception is coming in the console?

Thanks, Dipti
