Sep 10, 2019 12:40 AM UTC
Solved

Variations option missing in Experience Fragments in AEM 6.4

Version: AEM 6.4 - 6.4.4.0

Why does "Variation" option does not show up in a new Experience Fragment being built using default "HTML 5 Page" template that we're trying to create? While it shows if we use We.Retail's template? What are we missing?

Steps -- Does not show up

  1. Settings > Configuration Browser > Create > (Project-Name) > Editable Templates
  2. Settings > Templates > Create > (Project-Name) > HTML 5 Page > (PorjectName-Template) > Open

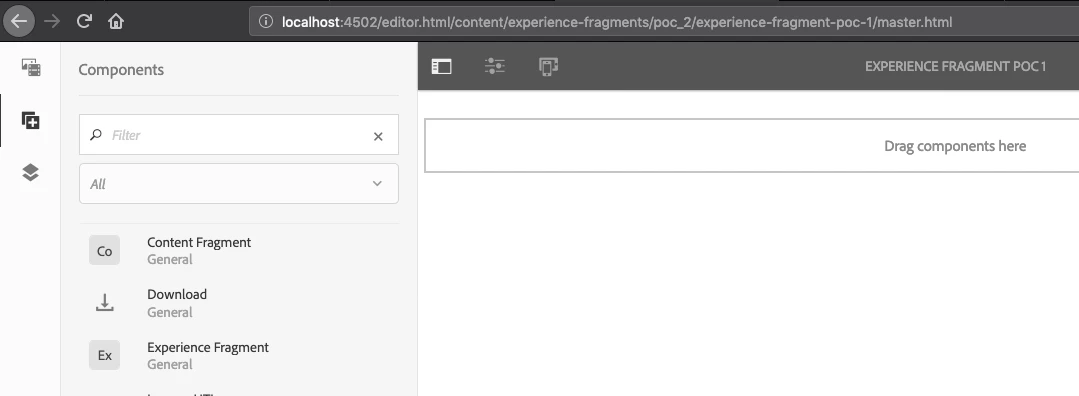

  3. Loads the Template Edit page but "Variations" does not show up.

Steps -- Shows up if We.Retail us used:

  1. Settings > Experience Fragment > ProjectName > Create > Experience Fragment > Choose We.Retail Web Variation Template > Open

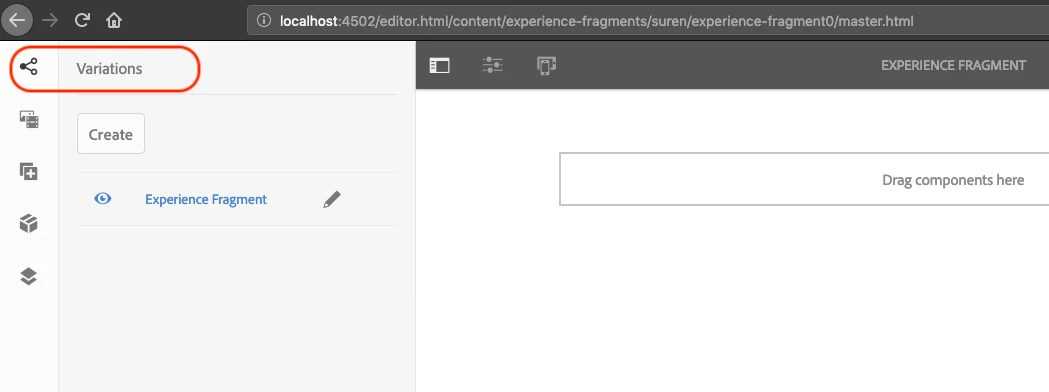

  2. Loads the Template Edit page with "Variations" Option

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    surenk
    surenkAccepted solution
    Level 4
    Sep 11, 2019 4:07 AM UTC

    Thanks for suggestions.

    1. Recompiling did not help.

    2. And i do not see any Errors in browser (tried Chrome & Firefox)

    Here's the issue/solution:

    An "Experience Fragment" needs to be built in a certain way only.. as follows:

    • An Experience Fragment <-- Editable Template <-- Template Type that uses xfpage (like sling:resourceType="wknd/components/structure/xfpage"/> and the xfpage component should use sling:resourceSuperType="cq/experience-fragments/components/xfpage")
    • The name of the template need to be used for an XF should have the prefix "experience-fragment-<name>" [I didn't like this hard rule but the designers of this may have some reasons for this]

    REF: Experience Fragments

    So if the XF is built using a Template (Editable) and Template Type which are built as above.. then the XF will show the Variations option.

    NOTE: Adobe WKND (/conf/wknd/settings/wcm/template-types) demo site and OOTB Template - HTML5 Page (/libs/settings/wcm/template-types/html5page) do not have a Template Type built using xfpage and if you're trying to build a template using any of them.. XF's will not show the Varations option. Only We.Retail has those special XF based templates (and template types)

    View reply

    5 replies

    arunpatidar
    arunpatidar
    New Participant
    Sep 12, 2019 11:26 AM UTC

    Hi,

    for naming it is not a hard rule to name template with experience-fragments, but it will help to avoid further changes to allow template but it is easy

    • The name of the template must begin with: experience-fragments This allows users to create experience fragments in /content/experience-fragments as the cq:allowedTemplates property of this folder includes all the templates that have names beginning with experience-fragment . Customers can update this property to include their own naming scheme or template locations.
    • Or:Add the template details manually in cq:allowedTemplates on the /content/experience-fragment node.

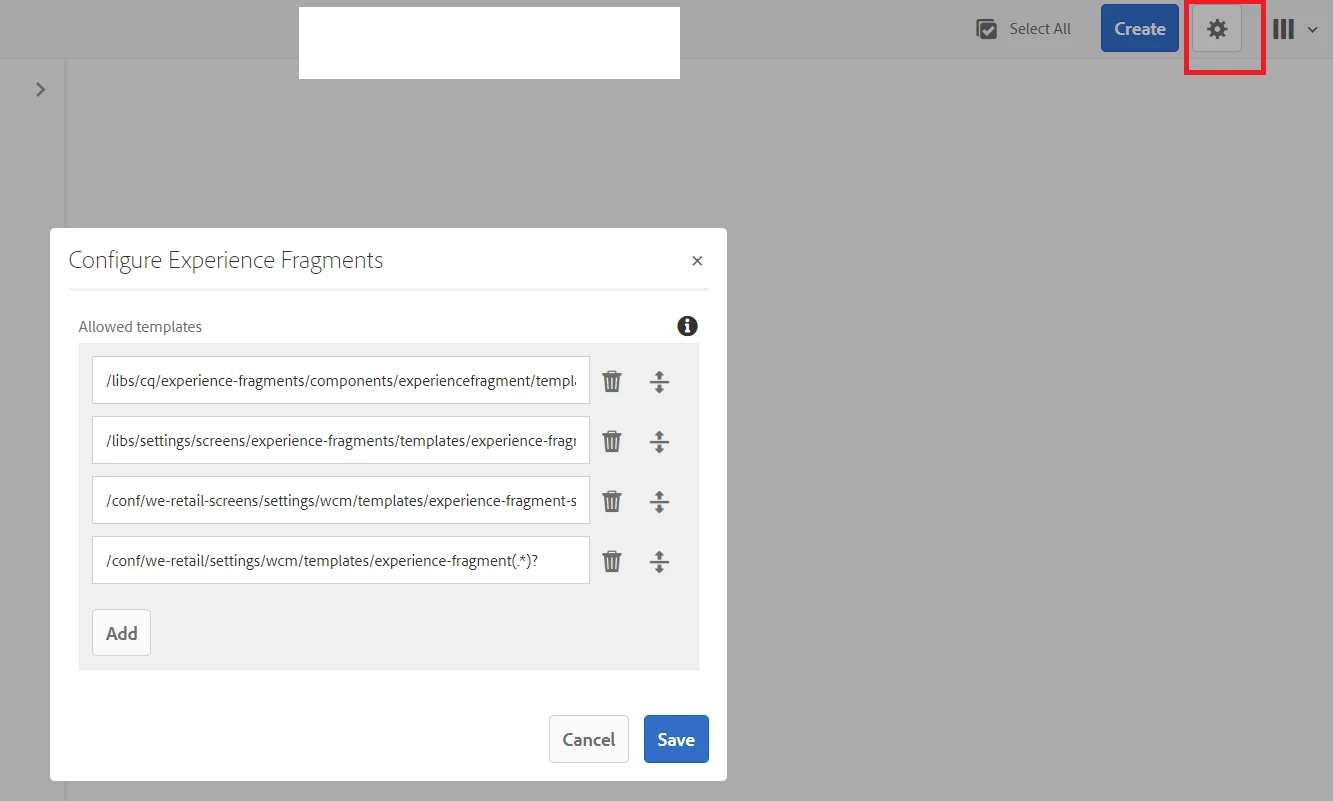

    • Or using UI in experience fragment console.

    Translate
    Arun Patidar
      surenk
      surenkAuthorAccepted solution
      Level 4
      Sep 11, 2019 4:07 AM UTC

      Thanks for suggestions.

      1. Recompiling did not help.

      2. And i do not see any Errors in browser (tried Chrome & Firefox)

      Here's the issue/solution:

      An "Experience Fragment" needs to be built in a certain way only.. as follows:

      • An Experience Fragment <-- Editable Template <-- Template Type that uses xfpage (like sling:resourceType="wknd/components/structure/xfpage"/> and the xfpage component should use sling:resourceSuperType="cq/experience-fragments/components/xfpage")
      • The name of the template need to be used for an XF should have the prefix "experience-fragment-<name>" [I didn't like this hard rule but the designers of this may have some reasons for this]

      REF: Experience Fragments

      So if the XF is built using a Template (Editable) and Template Type which are built as above.. then the XF will show the Variations option.

      NOTE: Adobe WKND (/conf/wknd/settings/wcm/template-types) demo site and OOTB Template - HTML5 Page (/libs/settings/wcm/template-types/html5page) do not have a Template Type built using xfpage and if you're trying to build a template using any of them.. XF's will not show the Varations option. Only We.Retail has those special XF based templates (and template types)

      Translate
        vish.dhaliwal
        Employee
        Sep 10, 2019 1:41 PM UTC

        Did you check this post -> How to create Experience Fragments Template?

        Translate
        Hamid1350
        Employee
        Sep 10, 2019 1:41 PM UTC

        If the issue persists after force clientlibs re-compilation you may wanna check the browser debug tool as well as "error.log" for any relevant error that may help to understand what might went wrong.

        Translate
        leoberliant
        Employee
        Sep 10, 2019 12:28 PM UTC

        Try to force clientlibs re-compilation [1] and clear browser's cache

        [1] How to force a recompilation of all Sling scripts jsps, java, and sightly in AEM 6.4

        Translate
