Combining PDF Attachments with DDX, then send separately with Document of Record in AEM OSGi Workflow

  • September 15, 2020
  • 22 replies
  • 10011 views

I have a dynamic number of pdf attachments as input from an adaptive form, and would like to merge all attached pdfs into a single pdf using DDX, then have it send separately with the Document of Record with the Send Email step. However I encountered an issue with the Send Email step with the following:



Caused by: com.adobe.granite.workflow.WorkflowException: GetPropertyValue failed as value corresponding to VARIABLE:attachments for type class java.lang.Object is NULL





The DDX is as follows:



<DDX xmlns="http://ns.adobe.com/DDX/1.0/"> <PDF result="Attachments.pdf"> <PDF source="fileAttachment"/> </PDF> </DDX>

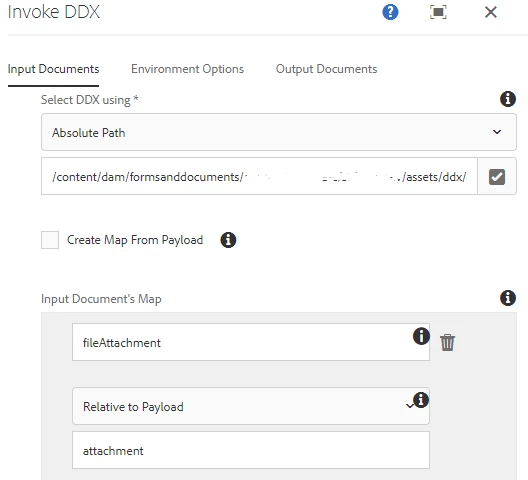

Input map for invoke ddx:

The "attachment" path matches the output attachment folder of the adaptive form

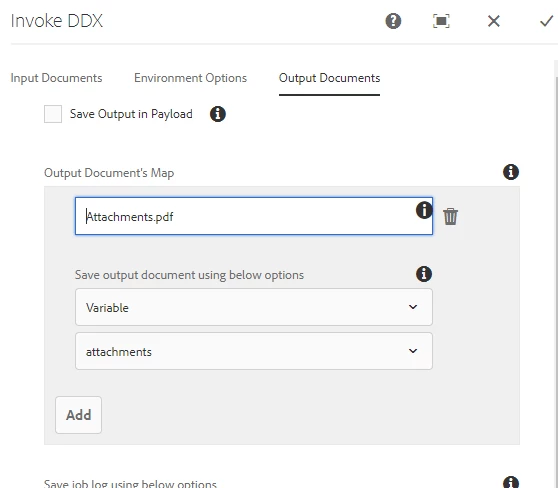

Output map:

The output document is saved into the "attachments" document variable

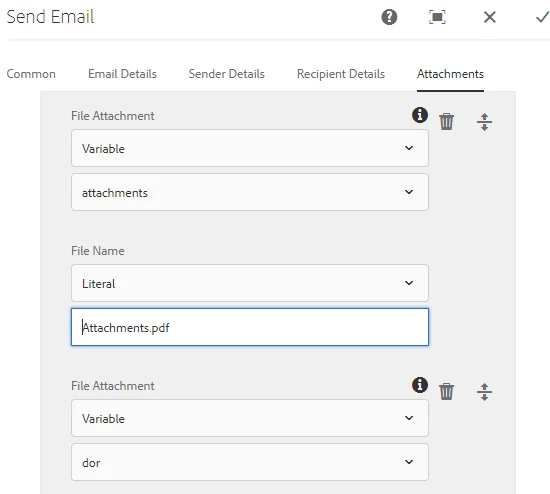

Send Email step with Document of Record and attachments document:



 I am unsure why the value for attachments is NULL. Any help on this is appreciated, thank you!



EDIT - testing workflowuser's process:

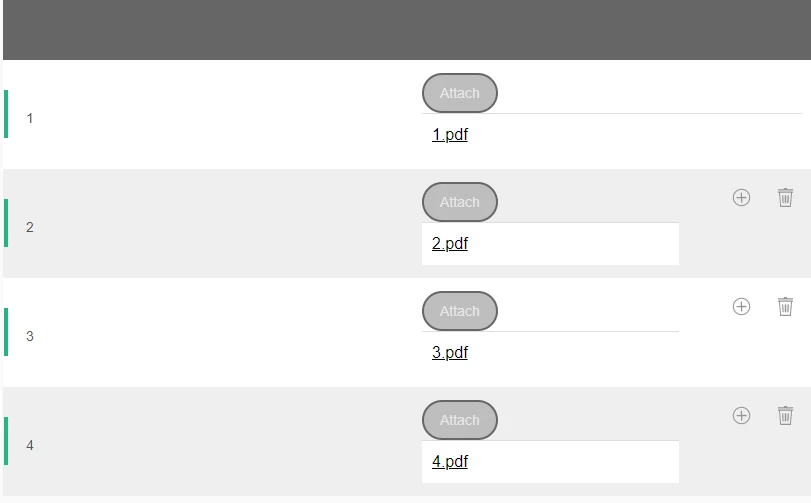

The following is the dynamic table with file attachments. The ordering is PDFs 1,2,3,4, but the resultant PDF from the process gives ordering 2,3,4,1.



    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by GirishBedekar

    please log a support ticket with Adobe if you are having problems with 20 or more attachments in the form

    22 replies

    G
    GirishBedekar
    New Participant
    January 4, 2021

    Are you able to assemble secured pdf using Acrobat?

      T
      techddxAuthor
      New Participant
      January 4, 2021
      No, I am unable to since it requests for a password when combining
      W
      workflowuser
      Employee
      December 4, 2020

      The updated custom bundle  which allows you to assemble xfa based form is now available and can be downloaded from here

      custom bundle



      The entire article is available on experience league

        T
        techddxAuthor
        New Participant
        January 4, 2021
        Thank you! This is unrelated, but is it possible for secured PDFs to be merged with DDX without their passwords? The use case would be similar to Adobe Sign, where all attachments can be rendered and merged regardless if they are secured or not.
        G
        GirishBedekar
        New Participant
        October 7, 2020

        I have also added bookmarks to the assembled pdf

        open the assembled pdf using Adobe reader and check the bookmarks

          W
          workflowuser
          Employee
          October 7, 2020

          Here is the latest bundle

          https://documentcloud.adobe.com/link/track?uri=urn:aaid:scds:US:6c353e00-1139-48c6-b8b3-5bd4abda5fd5

          I have increased the size of my query to 100

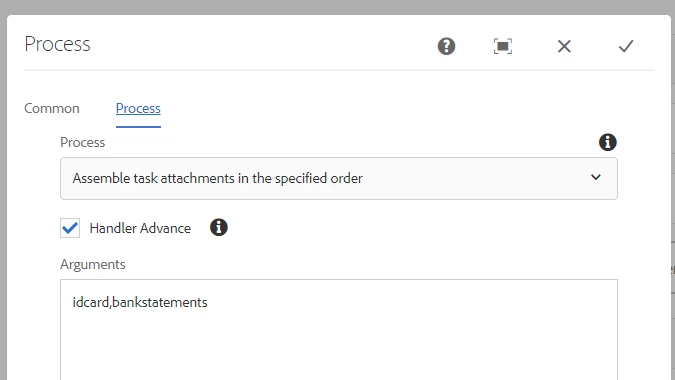

          Your workflow step should look like this



            T
            techddxAuthor
            New Participant
            October 7, 2020
            Hi workflowuser, I tested the new bundle and there are no issues with 20+ attachments. Thank you!
            G
            GirishBedekar
            New Participant
            October 6, 2020

            As a workaround have two repeating panel’s. The first panel you can allow users to add a maximum of say 12 attachments

            In the second panel they can add another 8 attachments and submit the form

            this is working for me

              G
              GirishBedekar
              New Participant
              October 6, 2020

              Is that a common use case of attaching 20 pdf files?

                T
                techddxAuthor
                New Participant
                October 6, 2020
                It is an uncommon use case, but there may be times where there are 20+ attachments.
                G
                GirishBedekarAccepted solution
                New Participant
                September 23, 2020

                please log a support ticket with Adobe if you are having problems with 20 or more attachments in the form

                  G
                  GirishBedekar
                  New Participant
                  September 23, 2020

                  Did you enable the log for the bundle?

                  check the logs it should give you more information

                  Are these attachments all pdf files?

                    T
                    techddxAuthor
                    New Participant
                    September 23, 2020

                    Hi Girish, yes all attachments are pdf

                    G
                    GirishBedekar
                    New Participant
                    September 22, 2020

                    https://docs.adobe.com/content/help/en/experience-manager-65/forms/adaptive-forms-basic-authoring/creating-forms-repeatable-sections.html

                      T
                      techddxAuthor
                      New Participant
                      October 5, 2020
                      Hi Giresh, i was able to resolve the repeating panel issue by adding a subform in the xdp and rewriting the schema. Thank you
                      W
                      workflowuser
                      Employee
                      September 22, 2020

                      your Data.xml should look something like this. It should have fileAttachment elements in it

                      <?xml version="1.0" encoding="UTF-8" standalone="no"?>
                      <afData>
                      <afUnboundData>
                      <data>
                      <tableItem11>Testing</tableItem11>
                      <telephonebill>
                      <fileAttachment>aa.png</fileAttachment>
                      </telephonebill>
                      <Row2>
                      <bankstatements>
                      <fileAttachment>adls.png</fileAttachment>
                      </bankstatements>
                      </Row2>
                      <idcard>
                      <fileAttachment>etrade.PNG</fileAttachment>
                      </idcard>
                      </data>
                      </afUnboundData>
                      <afBoundData>
                      <data xmlns:xfa="http://www.xfa.org/schema/xfa-data/1.0/"/>
                      </afBoundData>
                      <afSubmissionInfo>
                      <computedMetaInfo/>
                      <stateOverrides/>
                      <signers/>
                      <afPath>/content/dam/formsanddocuments/assembleattachments</afPath>
                      <afSubmissionTime>20200920124211</afSubmissionTime>
                      </afSubmissionInfo>
                      </afData>
