AEM 6.1 Touch Ui checkbox, how to get it unchecked while reopening the dialog.

  • March 16, 2016
  • 25 replies
  • 39081 views

[Thread Edited By Adobe]

/*Don’t forget to meet and greet your fellow peers virtually by telling them about yourself here.

Go ahead and to it now: https://adobe.ly/3eDnB4v */



Actual Post:

Hi,

Using AEM 6.1, Touch Ui dialogs, I have a checkbox (checked by default).



1. Checkbox is checked (first time, be default)

2. Uncheck the checkbox and submit the dialog

3. Open the dialog, it is still checked.

Question: Is there any way to uncheck the checkbox in Step 3 above





    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by Tyler_Maynard

    After playing around, here is the approach I use now involves using cq:template to prefill the resource with a checked value. Just make sure the name of the value you are saving, and the value that is set when checked are present in the cq:template.

    Component:

    cq:dialog:

    <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" jcr:title="Checkbox" sling:resourceType="cq/gui/components/authoring/dialog" helpPath="en/cq/current/wcm/default_components.html#Image"> <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns" margin="{Boolean}false" type="nav"/> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <items jcr:primaryType="nt:unstructured"> <hideMobile jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/checkbox" name="./myValue" text="Check By Default" value="isChecked"/> </items> </column> </items> </content> </jcr:root>



    cq:template

    <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" myValue="isChecked"> </jcr:root>



    checkbox.html

    <h1>${properties.myValue}</h1>




    25 replies

    shreyaj70113487
    shreyaj70113487
    New Participant
    May 2, 2019

    Add “uncheckedValue” property. Assign value to it that which should be saved on the node when checkbox is not checked.

    Can you please suggest how the same works for classic UI in AEM 6.0

      akashs51893872
      akashs51893872
      New Participant
      January 16, 2019

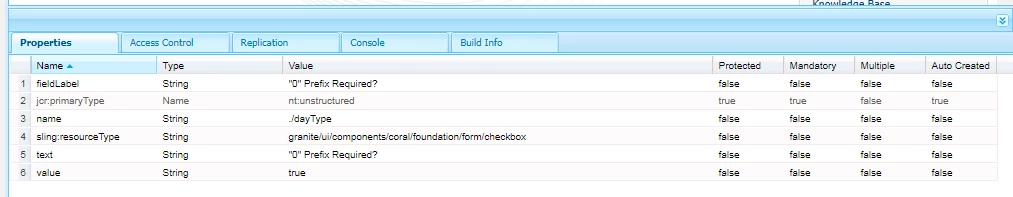

      This worked for me with Coral component:

        suresh3366
        suresh3366
        New Participant
        August 10, 2017

        Steps to achieve this

        Create nt:unstructured node with sling:resourceType = granite/ui/components/foundation/form/checkbox

        Add defaultChecked property (boolean) true

        Add “uncheckedValue” property. Assign value to it that which should be saved on the node when checkbox is not checked.

        Add “value” property.  The value of this property will be saved on the node when checkbox is selected.

        example:

        <checkbox

                                                                    jcr:primaryType="nt:unstructured"

                                                                    sling:resourceType="granite/ui/components/foundation/form/checkbox"

                                                                    filedDescription="Select Checkbox"

                                                                    name="./checkBox"

                                                                    text="Checkbox"

                                                                    value="true"

                                                                    defaultChecked="{Boolean}true"

                                                                    uncheckedValue="false"/>

        tried and tested

          D
          David_McKinnon
          New Participant
          June 2, 2017

          This worked for me:

          <registerNow
              jcr:primaryType="nt:unstructured"
              sling:resourceType="granite/ui/components/foundation/form/checkbox"
              fieldDescription="When checked, the Register Now section button appears on the page for members to use"
              text="Register Now"
              name="./registerNow"
              value="{Boolean}true"/>
          <registerNowType
              jcr:primaryType="nt:unstructured"
              sling:resourceType="granite/ui/components/foundation/form/hidden"
              name="./registerNow@TypeHint"
              value="Boolean"/>
          <registerNowDefaultValue
              jcr:primaryType="nt:unstructured"
              sling:resourceType="granite/ui/components/foundation/form/hidden"
              name="./registerNow@DefaultValue"
              value="{Boolean}true" />
          1. When adding a new component, the checkbox is checked.
          2. Unchecking the checkbox in the dialog is saved.
          3. Checkbox remains unchecked when opening the dialog.
            W
            w0lver_n3
            New Participant
            April 19, 2017

            Which AEM version are you using, I am facing this issue in AEM 6.1. Do you have any idea if there is a day care hotfix for the same or has it been fixed in AEM 6.2? Do let me know.

              S
              saicharanu23805
              New Participant
              February 13, 2017

              I have same kind of issue, so i have added following properties it works as expected.

              defaultChecked(boolean) = "true"

              unCheckedValue(boolean) = "false".

              So now you will be having either true or false in jcr:

              Hope it helps!!!!.

                jeq0214
                jeq0214
                New Participant
                July 28, 2016

                This worked for me. Thanks!

                  Tyler_Maynard
                  Tyler_MaynardAccepted solution
                  New Participant
                  July 28, 2016

                  After playing around, here is the approach I use now involves using cq:template to prefill the resource with a checked value. Just make sure the name of the value you are saving, and the value that is set when checked are present in the cq:template.

                  Component:

                  cq:dialog:

                  <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" jcr:title="Checkbox" sling:resourceType="cq/gui/components/authoring/dialog" helpPath="en/cq/current/wcm/default_components.html#Image"> <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <layout jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns" margin="{Boolean}false" type="nav"/> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/container"> <items jcr:primaryType="nt:unstructured"> <hideMobile jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/checkbox" name="./myValue" text="Check By Default" value="isChecked"/> </items> </column> </items> </content> </jcr:root>



                  cq:template

                  <?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" myValue="isChecked"> </jcr:root>



                  checkbox.html

                  <h1>${properties.myValue}</h1>




                    jeq0214
                    jeq0214
                    New Participant
                    July 28, 2016

                    clemente.pereyra wrote...

                    In case you are still looking for a solution to this issue, this is what I did and it works as expected.

                    You need a pair of nodes for each checkbox you want:

                    <registerNow
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/foundation/form/checkbox"
                        fieldDescription="When checked, the Register Now section button appears on the page for members to use"
                        text="Register Now"
                        name="./registerNow"
                        value="true"/>
                    <registerNowType
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/foundation/form/hidden"
                        name="./registerNow@TypeHint"
                        value="Boolean"/>

                    Cheers!



                    I was not able to get a default check. What version are you on?

                      Clemente-3SHARE
                      Clemente-3SHARE
                      New Participant
                      July 22, 2016

                      In case you are still looking for a solution to this issue, this is what I did and it works as expected.

                      You need a pair of nodes for each checkbox you want:

                      <registerNow
                          jcr:primaryType="nt:unstructured"
                          sling:resourceType="granite/ui/components/foundation/form/checkbox"
                          fieldDescription="When checked, the Register Now section button appears on the page for members to use"
                          text="Register Now"
                          name="./registerNow"
                          value="true"/>
                      <registerNowType
                          jcr:primaryType="nt:unstructured"
                          sling:resourceType="granite/ui/components/foundation/form/hidden"
                          name="./registerNow@TypeHint"
                          value="Boolean"/>

                      Cheers!
