RTE doesn't work when placed in a page dialog?

  • February 14, 2018
  • 13 replies
  • 10253 views

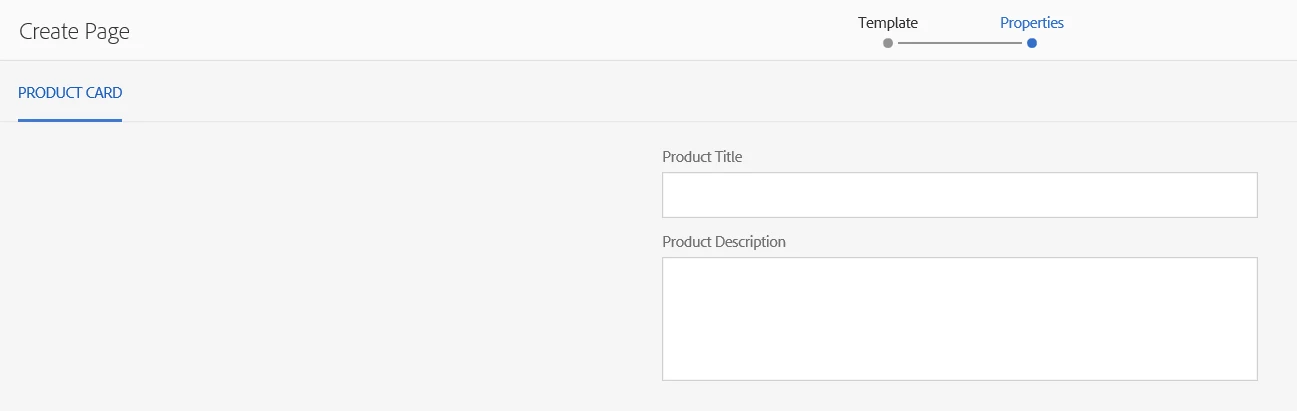

I have created a static template for some product pages. Simplified for debugging it looks like this at page creation time:

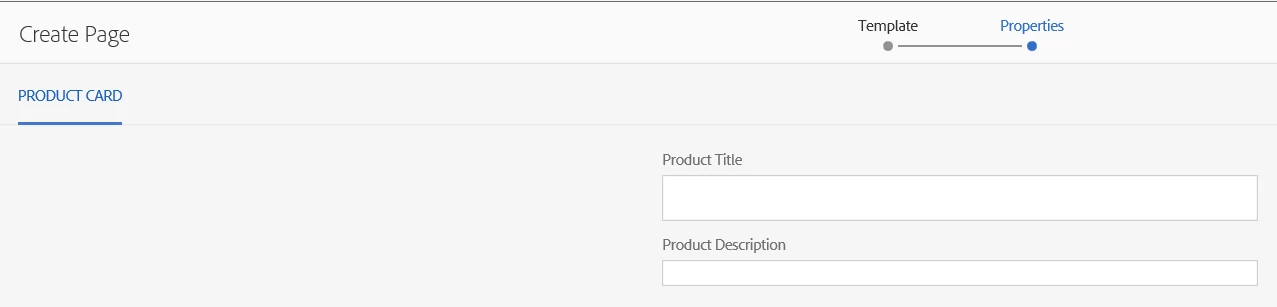

However when the Product Description field is replaced by a richtext, the input collapses to this:

What could cause this?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by praveenjain

Root Cause : The div created for RTE filed during page creation does not contain contenteditable="true" but contains when Edited from Page properties.

<div class="coral-RichText-editable coral-Form-field coral-Textfield coral-Textfield--multiline coral-RichText is-edited webkit chrome" data-config-path="/mnt/override/apps/gwc/watchman/components/page/localePage/_cq_dialog/content/items/tabs/items/ctc/items/column/items/ctcicontext.infinity.json" data-use-fixed-inline-toolbar="true" data-custom-start="null" data-editor-type="text" data-external-style-sheets="" contenteditable="true" style="outline-style: none;"><p>Call Now</p></div>

Fix:

If you need to make it editable during page creation

You need to write js on foundation-contentloaded (component clientlib) $(document).on("foundation-contentloaded",function(){}

and add contenteditable="true" in div. It will starting working fine.

13 replies

A
alexr21Author
New Participant
March 1, 2018

Per Adobe Daycare "RTE on Page Creation is not and OOTB AEM feature and not supported OOTB" and so jainpraveen12​'s answer is the correct one, although it is only a partial fix (the toolbar still won't display).

    P
    praveenjain
    New Participant
    February 25, 2018

    alexr2​ No, Multifield works fine in touch UI during page creation process.

    Issue with your attached dialog is you are using "foundation/form/fieldset" inside "coral/foundation/form/multifield", which is causing problem. Instead used all coral fields, it will work fine.

    Use: granite/ui/components/coral/foundation/form/fieldset

      A
      alexr21Author
      New Participant
      February 16, 2018

      Thanks jainpraveen12​. I will try this shortly. Do you have any idea why Multifield also doesn't work on Page Properties? Could it be a similar missing class?

        P
        praveenjainAccepted solution
        New Participant
        February 16, 2018

        Root Cause : The div created for RTE filed during page creation does not contain contenteditable="true" but contains when Edited from Page properties.

        <div class="coral-RichText-editable coral-Form-field coral-Textfield coral-Textfield--multiline coral-RichText is-edited webkit chrome" data-config-path="/mnt/override/apps/gwc/watchman/components/page/localePage/_cq_dialog/content/items/tabs/items/ctc/items/column/items/ctcicontext.infinity.json" data-use-fixed-inline-toolbar="true" data-custom-start="null" data-editor-type="text" data-external-style-sheets="" contenteditable="true" style="outline-style: none;"><p>Call Now</p></div>

        Fix:

        If you need to make it editable during page creation

        You need to write js on foundation-contentloaded (component clientlib) $(document).on("foundation-contentloaded",function(){}

        and add contenteditable="true" in div. It will starting working fine.

          A
          alexr21Author
          New Participant
          February 15, 2018

          As a temporary work-around, we've determined that the RTE works fine if you save (Create Page) and then re-open the Page Properties in edit mode.

            smacdonald2008
            smacdonald2008
            New Participant
            February 15, 2018

            I checked with our internal team. Here is an article that shows use of the RTE in a non-component.

            This one’s in asset metadata editor

            http://experience-aem.blogspot.in/2017/04/aem-62-touch-ui-rich-text-rte-in-asset-metadata-editor.html

              A
              alexr21Author
              New Participant
              February 15, 2018

              jainpraveen12​ the useFixedInlineToolbar=true was already in use, so that's not the cause of this issue.

              Here's the dialog xml:

              https://drive.google.com/file/d/17c5WDoa17CCLCpVfolcrOj1-M2MS1obi/view?usp=sharing

                A
                alexr21Author
                New Participant
                February 15, 2018

                smacdonald2008 It's for a description field which we need to reference in other pages. Think of a page containing a really long article, and then having a requirement to create a "top articles of the month" page where you want to pull in just the titles and summaries of those original articles.

                  smacdonald2008
                  smacdonald2008
                  New Participant
                  February 15, 2018

                  WHy do you need a RTE in a page dialog. A RTE is typically used to get rich text to display in web sites. For Page dialogs, the default types should suffice in gather information about the page.

                    P
                    praveenjain
                    New Participant
                    February 15, 2018

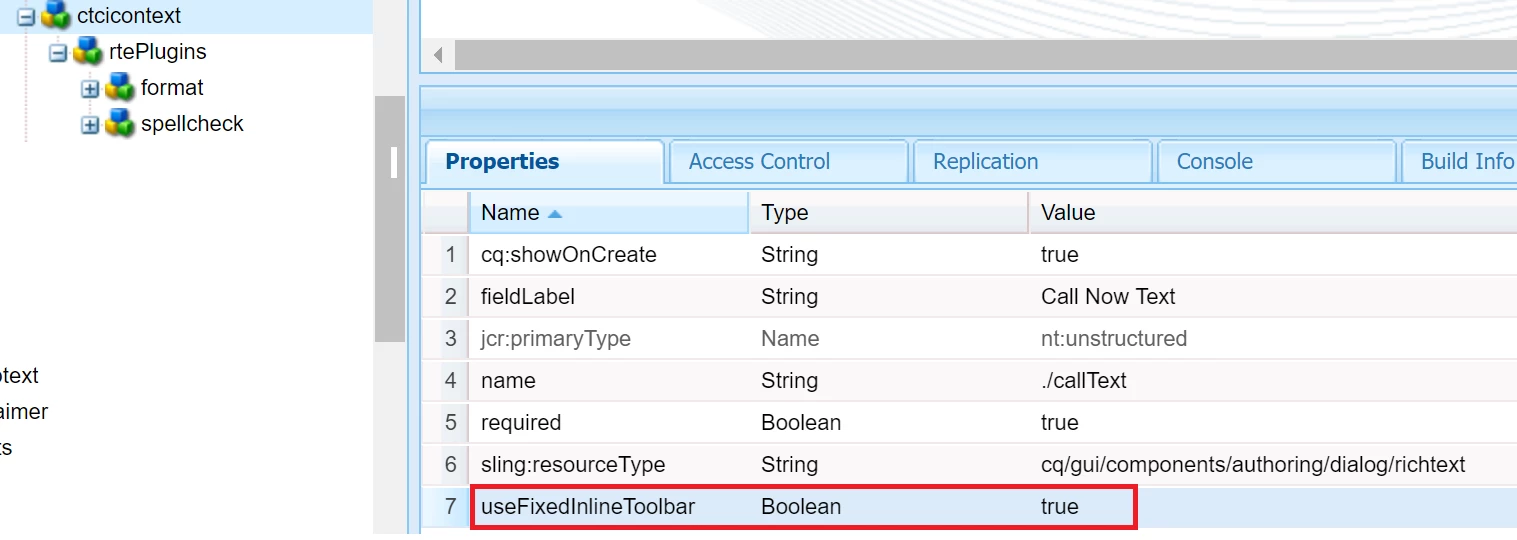

                    You should add useFixedInlineToolbar property in RTE field as true, as shown below then only inline RTE editing will be enabled.

                    Component Dialog RTE works in full screen mode, here in Template we are doing inline editing in touch UI , hence these changes needs to be made.

                    If it still doesn't work, please provide the dialog xml, i can check if anything missing.

                    Also If you are using TouchUI Laptop/System, please disabled and try again.
